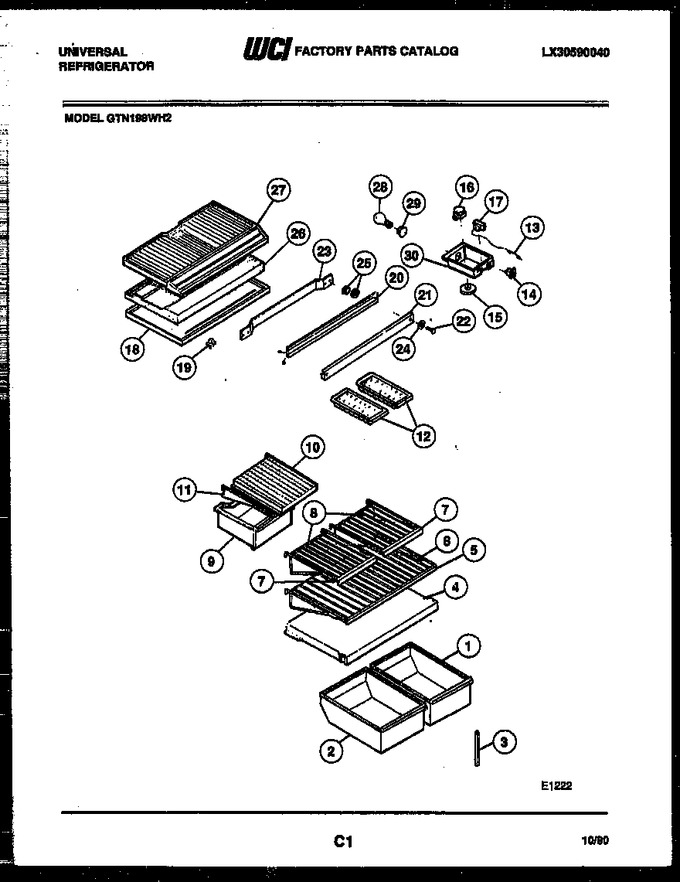

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001437 | Crisper Pan-rs |
|
- | |||||
| 2 | 5303001436 | Crisper Pan-ls |
|
- | |||||
| 3 | 5303205987 | Support-cover Adj |
|
$ 48.41 | |||||
| 4 | 5303001493 | Crisper Cover |
|
- | |||||
| 5 | 5303211249 | Trim-full Shelf |
|
- | |||||
| 6 | 5303211252 | Full Shelf |
|
- | |||||
| 7 | 5303211253 | Trim-half Shelf (2) |
|
- | |||||
| 8 | 5303210346 | Half Shelf (2) |
|
- | |||||
| 9 | 5303015407 | Meat Pan |
|
- | |||||
| 10 | 5318719501 | Cover-meat Pan |
|
- | |||||
| 11 | G187213-04 | Rail-offset (lh) |
|
- | |||||
| 11 | G187214-04 | Rail-straight (rh) |
|
- | |||||
| 12 | 5303001324 | Ice Trays |
|
- | |||||
| 13 | 5308037932 | Tube-plastic |
|
- | |||||
| 14 | 5303001670 | Switch-energy Saver |
|
- | |||||
| 15 | 5317478101 | Knob-control |
|
- | |||||
| 16 | 5303200810 | Control-temp |
|
$ 126.87 | |||||
| 16 | 5303001260 | Screw |
|
$ 6.73 | |||||
| 17 | 215846602 | Timer-defrost (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 17 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 18 | 5303016367 | Top-refrigerator |
|
- | |||||
| 19 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 20 | 5303210351 | Heater-mullion |
|
- | |||||
| 21 | 5303200369 | Mullion - Coffee |
|
- | |||||
| 21 | 5303200368 | Mullion, Wheat |
|
- | |||||
| 21 | 5303200367 | Mullion - Avocado |
|
- | |||||
| 21 | 5303200366 | Mullion, White |
|
$ 70.04 | |||||
| 21 | 5303200370 | Mullion, Almond |
|
- | |||||
| 22 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 23 | 5308010008 | Strap-mullion |
|
- | |||||
| 24 | 5303206754 | Washer, Steel (2) |
|
- | |||||
| 25 | 5303200464 | Spacer (2) |
|
- | |||||
| 26 | 5303001504 | Divider |
|
- | |||||
| 26 | 3001383 | Harness-divider (non-illustrated) |
|
- | |||||
| 27 | 5303001505 | Bottom, Freezer |
|
- | |||||
| 28 | 5303001179 | Bulb, Light |
|
- | |||||
| 29 | 5308000129 | Socket-light |
|
$ 62.16 | |||||
| 30 | 3001454 | Box-control |
|
- | |||||
| *40256 | 5303001339 | Label-control Box |
|
- |
