SELECT A DIAGRAM

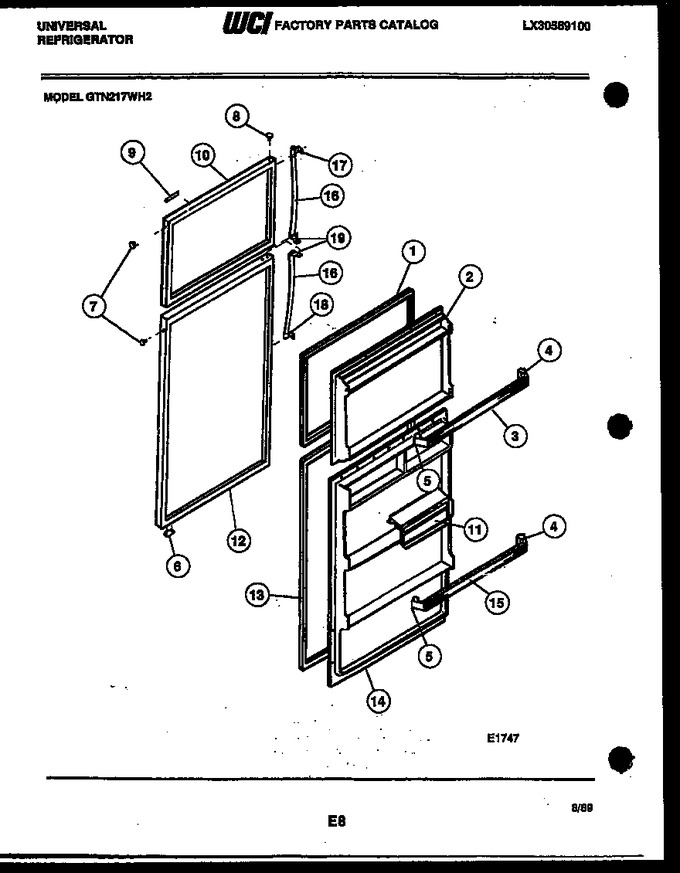

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


06 - Ice Maker And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G186932-14		Gasket-freezer		Appelez-nous	-
2	G187307-02		Panel-inner		Appelez-nous	-
3	G161019-67		Rack (2)		Appelez-nous	-
4	G185363-02		Support Rh (4)		Appelez-nous	-
5	G185364-02		Support Lh (4)		Appelez-nous	-
6	G155072		Stop, Door (2)		Appelez-nous	-
7	G162977-11		Button Plug-almond		Appelez-nous	-
8	G169332-11		Button Plug, Almond		Appelez-nous	-
9	G171161-01		Frame-nameplate		Appelez-nous	-
10	G188158-11		Panel-outer-almond		Appelez-nous	-
11	G178500-14		Door Compartment (2)		Appelez-nous	-
12	G178694-11		Panel, Outer, Almond		Appelez-nous	-
13	08015544		Gasket-refrigerator		Appelez-nous	-
14	3001317		Panel-inner		Appelez-nous	-
15	G161019-44		Rack-refr Door-top		Appelez-nous	-
16	G170495-29		Grip-handle (2)		Appelez-nous	-
17	G179800		End-top		Appelez-nous	-
18	G179801		End-bottom		Appelez-nous	-
19	G187329-01		End (2)		Appelez-nous	-
*44035	G185566		Screw		Appelez-nous	-
10A	08012007		Bearing-hinge		Appelez-nous	-
12A	08012007		Bearing-hinge		Appelez-nous	-
14A	3001001		Screw-panel Mtg (34) (non-illustrated)		Appelez-nous	-
15A	G161019-67		Rack-refr Door-bottom (non-illustrated)		Appelez-nous	-
2A	3001001		Screw (24) (non-illustrated)		Appelez-nous	-
6A	G185566		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
