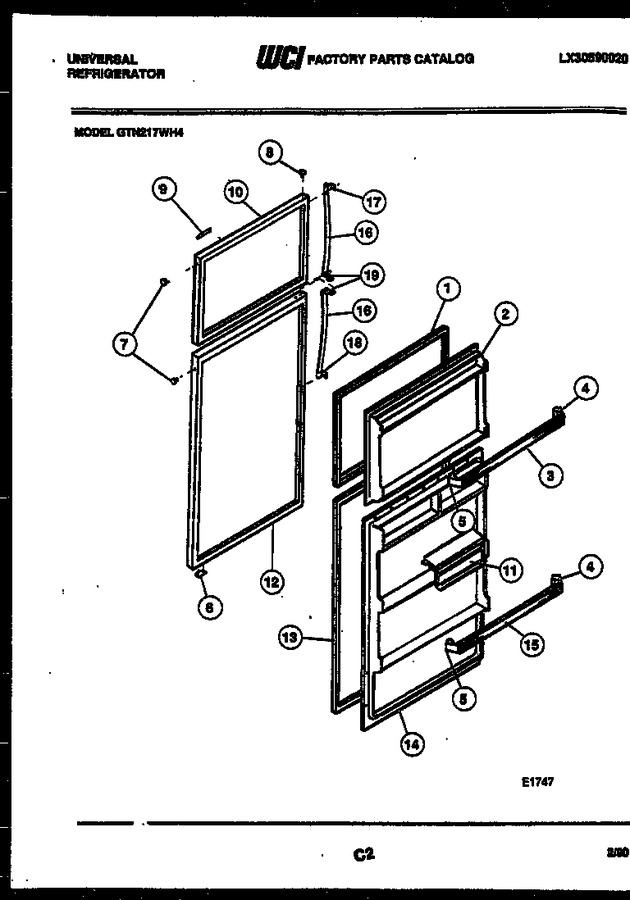

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308016617		Gasket-freezer		Appelez-nous	-
2	3001408		Panel-inner		Appelez-nous	-
3	3001409		Rack (2)		Appelez-nous	-
4	5303001410		Support Rh (4)		Appelez-nous	-
5	5303001411		Support Lh (4)		Appelez-nous	-
6	5308000255		Stop-door (2)				$ 42.20
7	5308000180		Button-wheat (8)		Appelez-nous	-
8	5308000176		Button-wheat		Appelez-nous	-
9	5317116101		Frame-nameplate		Appelez-nous	-
10	G188158-09		Panel-outer-wheat		Appelez-nous	-
11	5303001415		Door Compartment (2)		Appelez-nous	-
12	5317869409		Panel-outer-wheat		Appelez-nous	-
13	5308015544		Gasket-refrigerator		Appelez-nous	-
14	3001417		Panel-inner		Appelez-nous	-
15	5303001418		Rack-refr Door-top		Appelez-nous	-
16	5317049529		Grip-handle (2)		Appelez-nous	-
17	5303001297		End-top				$ 70.22
18	5300179801		End-bottom		Appelez-nous	-
19	5303001296		End (2)				$ 86.36
*26733	5308011745		Screw				$ 10.38
*26733	5303007739		Insulation, Bulk		Appelez-nous	-
10A	5308012007		Bearing-hinge (4) (non-illustrated)		Appelez-nous	-
12A	5308012007		Bearing-hinge (4) (non-illustrated)		Appelez-nous	-
14A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
15A	G161019-67		Rack-refr Door-bottom (non-illustrated)		Appelez-nous	-
2A	218843801		Screw   (Replaces: 5303001001)				$ 14.41
6A	5308011745		Screw				$ 10.38

    View Diagram in Separate Window       Print Part List
