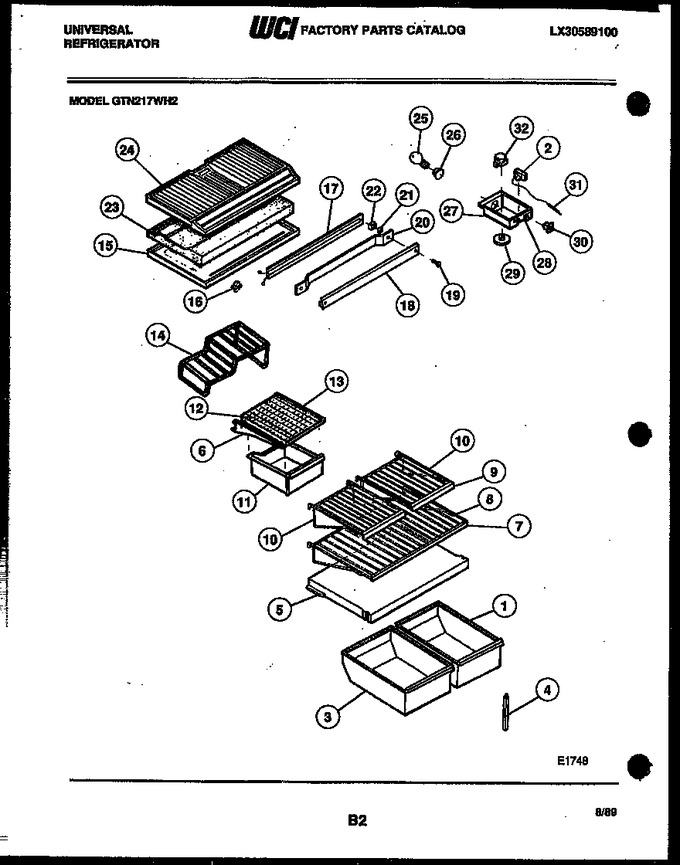

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
06 - Ice Maker And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3001437 | Pan-crisper Rs |
|
- | |||||
| 2 | G107080 | Screw |
|
- | |||||
| 2 | 3200810 | Control-temperature |
|
- | |||||
| 3 | 3001436 | Pan-crisper Ls |
|
- | |||||
| 4 | G166310-02 | Support, Cover |
|
- | |||||
| 5 | 3001438 | Cover-crisper |
|
- | |||||
| 6 | G187214-04 | Rail-straight Ls |
|
- | |||||
| 7 | G172434-40 | Trim-front |
|
- | |||||
| 8 | G177390-20 | Frame-full Shelf |
|
- | |||||
| 9 | G172434-41 | Trim-front (2) |
|
- | |||||
| 10 | G177390-19 | Frame-half (2) |
|
- | |||||
| 11 | 3015407 | Pan-meat |
|
- | |||||
| 12 | G187195-01 | Cover, Meat Pan |
|
- | |||||
| 13 | 08002794 | Screw-rail (2) (non-illustrated) |
|
- | |||||
| 13 | G187213-04 | Rail-offset Rs |
|
- | |||||
| 14 | 3001422 | Shelf-freezer |
|
- | |||||
| 15 | G162673 | Screw-top Mtg (3) (non-illustrated) |
|
- | |||||
| 15 | 3001651 | Top-refrigerator |
|
- | |||||
| 16 | 09918806 | Switch-light |
|
- | |||||
| 17 | 08002662 | Heater-mullion |
|
- | |||||
| 18 | 3200367 | Mullion-avocado |
|
- | |||||
| 18 | 3200366 | Mullion-white |
|
- | |||||
| 18 | 3200368 | Mullion-wheat |
|
- | |||||
| 18 | 3200369 | Mullion-coffee |
|
- | |||||
| 18 | 3200370 | Mullion-almond |
|
- | |||||
| 19 | G183103 | Screw-mounting (4) |
|
- | |||||
| 20 | G490087 | Strap, Mullion Mtg |
|
- | |||||
| 21 | G166847 | Washer-steel (2) |
|
- | |||||
| 22 | 3200464 | Spacer (2) |
|
- | |||||
| 23 | 08013674 | Divider-styrofoam |
|
- | |||||
| 23 | 3001475 | Harness-divider (non-illustrated) |
|
- | |||||
| 24 | G184604 | Bottom-freezer |
|
- | |||||
| 25 | 3001179 | Bulb, Light |
|
- | |||||
| 26 | G168302 | Socket Light |
|
- | |||||
| 27 | G174655-18 | Box-control |
|
- | |||||
| 28 | G178294-01 | Lable-control Box |
|
- | |||||
| 29 | 3001335 | Knob, Control |
|
- | |||||
| 30 | 3001670 | Switch-slide |
|
- | |||||
| 31 | 08037932 | Tube-plastic |
|
- | |||||
| 32 | G187484 | Timer-defrost |
|
- | |||||
| *45172 | G105289 | Screw |
|
- |
