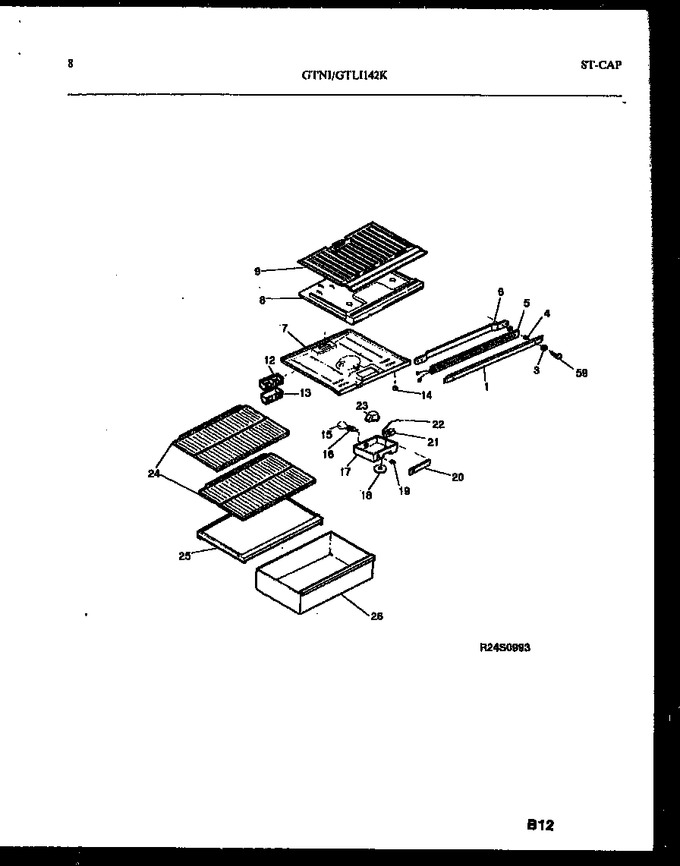

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3916132 | Mullion, Wheat |
|
- | |||||
| 3 | 5308003607 | Washer, No. 10 Steel, 7/23 X 7/16 Od |
|
$ 1.00 | |||||
| 4 | 5303200464 | Spacer, Mullion Mtg, (2) |
|
- | |||||
| 5 | 5308017408 | Heater-mullion |
|
- | |||||
| 6 | 5308003604 | Strap, Mullion Mtg |
|
- | |||||
| 7 | 5303015448 | Top Panel-refr, W/ Snap Bushing |
|
- | |||||
| 8 | 5308000759 | Divider, Styrofoam |
|
- | |||||
| 9 | 5308000748 | Bottom Panel-freezer |
|
- | |||||
| 12 | 5308000071 | Deflector-air |
|
- | |||||
| 13 | 5303001546 | Cover - Air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp |
|
- | |||||
| 16 | 5308000129 | Socket-light/lamp |
|
$ 62.16 | |||||
| 17 | 5317465503 | Box-control |
|
- | |||||
| 18 | 3018569 | Knob-temp Control |
|
- | |||||
| 19 | 5303001670 | Switch-energy Saver |
|
- | |||||
| 20 | 3018571 | Label-control Box |
|
- | |||||
| 21 | 5308015762 | Control, Temperature |
|
- | |||||
| 22 | 5303916855 | Sleeve-plastic Tube |
|
$ 60.96 | |||||
| 23 | 215846602 | Timer (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 24 | 5303200772 | Shelf-full, Sliding, Refr, (2) |
|
- | |||||
| 25 | 5308000749 | Cover-crisper Pan |
|
- | |||||
| 26 | 5303276910 | Pan-crisper |
|
- | |||||
| 17A | 3202734 | Button Plug, Control Box (non-illustrated) |
|
- | |||||
| 17B | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 21A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 23A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 7A | 5303001380 | Screw |
|
- | |||||
| 7B | 5303212518 | Bushing, Snap-in, Plastic (non-illustrated) |
|
- | |||||
| 8A | 3001383 | Wiring Harness, Control/divider (non-illustrated) |
|
- |
