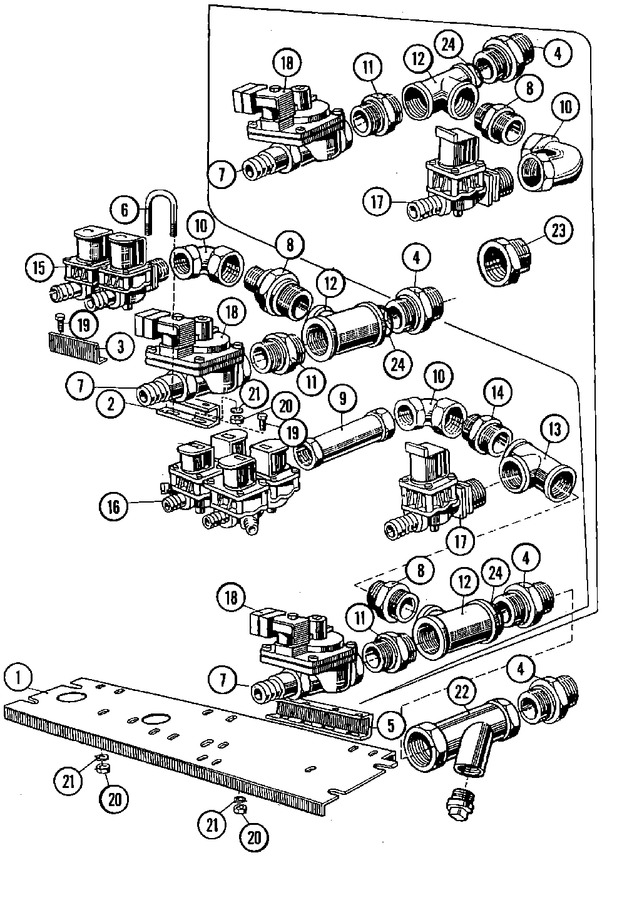

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002059		Support, Inlet Valve	10	Appelez-nous	-
002	23002060		Holder, Inlet Valve	10	Appelez-nous	-
003	23002061		Bracket	10	Appelez-nous	-
004	23002068		Adapter (1``)	10	Appelez-nous	-
005	23002063		Holder, Inlet Valve (i)	10			$ 2,073.59
006	23002064		Hook, Mounting	10		Immediately	$ 1,984.43
007	23002045		Coupling, Pipe	10	Appelez-nous	-
008	23002065		Adapter, Reduce (ii)	10			$ 2,073.59
009	23002066		Tube, Extension (i)	10			$ 1,830.98
010	23001756		Elbow (3/4``)	10	Appelez-nous	-
011	23002068		Nipple (1``)	10	Appelez-nous	-
012	23002069		T-part (1``)	10	Appelez-nous	-
013	23001485		T-part (3/4``)	10	Appelez-nous	-
014	23001482		Nipple (3/4`` Pipe Thread)	10			$ 747.91
015	23002070		Valve, Inlet (2-way 3/4``)	10	Appelez-nous	-
016	WP23001755		Valve, Inlet (4-way 3/4``)   (Replaces: 23001755)	10			$ 272.26
016	24001121		Kit, Valve Repair (10mm)	10	Appelez-nous	-
017	23002071		Valve, Inlet (1-way 3/4``)	10	Appelez-nous	-
017	23003693		Diaphragm, Valve	10	Appelez-nous	-
017	23006068		Coil, Valve   (Replaces: 23003694)	10	Appelez-nous	-
018	23002072		Valve, Inlet (1-way 1``)	10	Appelez-nous	-
018	23003693		Diaphragm, Valve	10	Appelez-nous	-
018	23006068		Coil, Valve   (Replaces: 23003694)	10	Appelez-nous	-
019	23001026		Bolt (m6 X 16)	10	Appelez-nous	-
020	23001034		Nut (m6)	10	Appelez-nous	-
021	23001027		Washer (6)	10	Appelez-nous	-
022	23002156		Filter	10	Appelez-nous	-
023	NLA		Adapter	10	Appelez-nous	-
024	NLA		Washer	10	Appelez-nous	-
