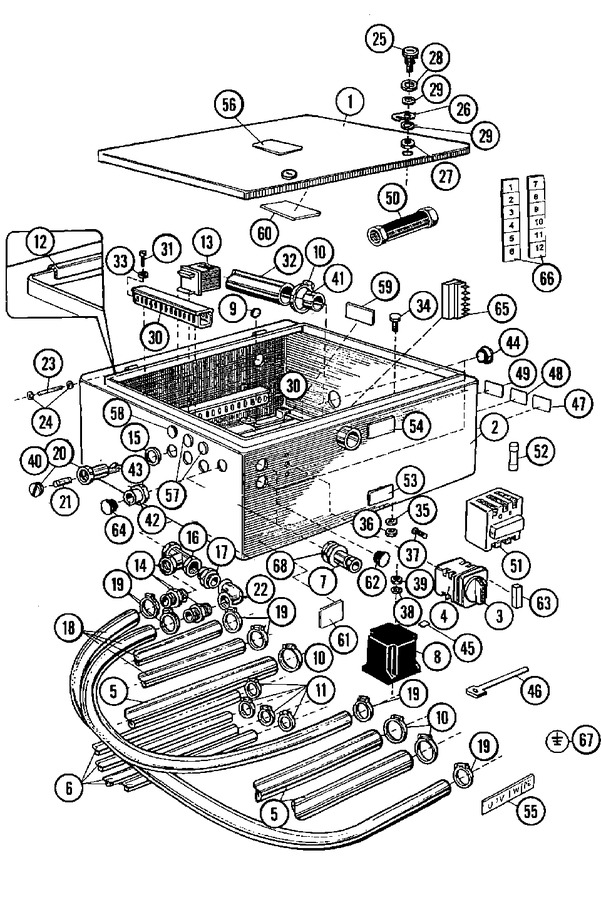

01 - Soap Injection & Accessories


02 - Soap Box Assembly


03 - Control Panel


04 - Main Control


05 - Water Valve Assembly


06 - Water Valve Assembly (two Waters)


07 - Door Lock Assembly


08 - Door


09 - Outer Shell Assembly


10 - Inner Basket


11 - Bearing Assembly


12 - Drain Valve Assembly


13 - Motor & Pulley


14 - Frame & Cover Assembly


15 - Side Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23002021		Cover, Electrical Box	10	Appelez-nous	-
002	23002020		Box, Distributor	10	Appelez-nous	-
003	23002141		Knob	10	Appelez-nous	-
004	23002983		Switch, Main   (Replaces: 23002022)	10			$ 392.15
005	23002984		Hose, Inlet   (Replaces: 23002023)	10	Appelez-nous	-
006	23001507		Hose, Inlet	10	Appelez-nous	-
007	NLA		Swivel, Cable	10	Appelez-nous	-
008	23002142		Transformer	10	Appelez-nous	-
008	23003704		Transformer (250 Va)	17	Appelez-nous	-
009	23002143		Nipple	10	Appelez-nous	-
010	WP616099		Clamp, Hose (32-50) (3 Waters)   (Replaces: 23001261)	10		Immediately	$ 7.03
011	WP596669		Clamp, Hose   (Replaces: 23001506)	10		Immediately	$ 7.56
012	23001088		Seal	10	Appelez-nous	-
013	23001102		Contactor (m7)	10		Immediately	$ 2,343.16
014	23001727		Connection, Tube	10	Appelez-nous	-
015	23001743		Ring, O (10x2)	10	Appelez-nous	-
016	23001485		Tee (3/4``)	10	Appelez-nous	-
017	23001482		Nipple (outside-3/4``)	10			$ 747.91
018	23001740		Hose (19x27)	10	Appelez-nous	-
019	WP616099		Clamp, Hose (20-32)   (Replaces: 23001262)	10		Immediately	$ 7.03
020	23001462		Holder, Fuse	10	Appelez-nous	-
021	23001463		Fuse (2a)	10	Appelez-nous	-
021	23002043		Fuse (4a)	10	Appelez-nous	-
022	23001756		Elbow (3/4``)	10	Appelez-nous	-
023	23001690		Pin, Hinge	10	Appelez-nous	-
024	23001056		Ring, Shaft Locking	10	Appelez-nous	-
025	23001006		Device, Locking	10	Appelez-nous	-
026	23001009		Hook, Lock (short)	10	Appelez-nous	-
027	23001011		Nut	10	Appelez-nous	-
028	23001008		Nut (large)	10			$ 186.62
029	23001007		Washer	10	Appelez-nous	-
030	23001551		Gutter, Cable (plastic)	10	Appelez-nous	-
031	23001361		Bolt M4x10	10	Appelez-nous	-
032	NLA		Hose, Vent	10	Appelez-nous	-
033	23001708		Washer (4.3)	10	Appelez-nous	-
034	23001026		Bolt (m6 X 16)	10	Appelez-nous	-
035	23001027		Washer (6.4)	10	Appelez-nous	-
036	23001034		Nut (m6)	10	Appelez-nous	-
037	23001361		Bolt (m4x16)	10	Appelez-nous	-
038	23001708		Washer (5.3)	10	Appelez-nous	-
039	W10244602		Nut (m5) Lu   (Replaces: 23001334)	10			$ 11.90
040	23002210		Holder, Fuse	10	Appelez-nous	-
042	23002196		Swivel, Cable	10	Appelez-nous	-
043	23002197		Nut	10	Appelez-nous	-
044	NLA		Packing, Multi-purpose	10	Appelez-nous	-
045	23002025		Connection, Electrical	10	Appelez-nous	-
046	23001720		Wire (wrap)	10	Appelez-nous	-
047	23001469		Sticker, Hot Water	10			$ 1,212.53
048	23001471		Sticker, Cold Soft Water	10			$ 1,387.22
049	NLA		Sticker, Cold Hard Water	10	Appelez-nous	-
050	23002057		Hose, Water Inlet (2 Waters)	10	Appelez-nous	-
050	23003973		Washer, Fill Hose	10	Appelez-nous	-
053	23001468		Sticker, Spin Direction	10			$ 870.39
054	23002053		Label, Warning Vent Out	10	Appelez-nous	-
055	NLA		Label (u V W Pe)	10	Appelez-nous	-
056	NLA		Label (electric Heating)	10	Appelez-nous	-
057	NLA		Label (4a)	10	Appelez-nous	-
058	23001744		Label (2a)	10	Appelez-nous	-
059	NLA		Label, Warning El. Tension	10	Appelez-nous	-
060	23001550		Label, Warning (export)	10	Appelez-nous	-
061	23001465		Label, Warning (export)	10	Appelez-nous	-
061	NLA		Label, Warning (import)	10	Appelez-nous	-
062	NLA		Blind, Universal	10	Appelez-nous	-
063	23002151		(without Heating)		Appelez-nous	-
063	23002152		(electrical Heating)		Appelez-nous	-
063	NLA		Contact (``n``)	10	Appelez-nous	-
064	23002153		Plug	10	Appelez-nous	-
065	23002154		Board, Terminal (6 Poles)	10	Appelez-nous	-
066	23002218		Label, Terminal Board	10	Appelez-nous	-
067	NLA		Label, Earth	10	Appelez-nous	-
068	23002197		Nut	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
