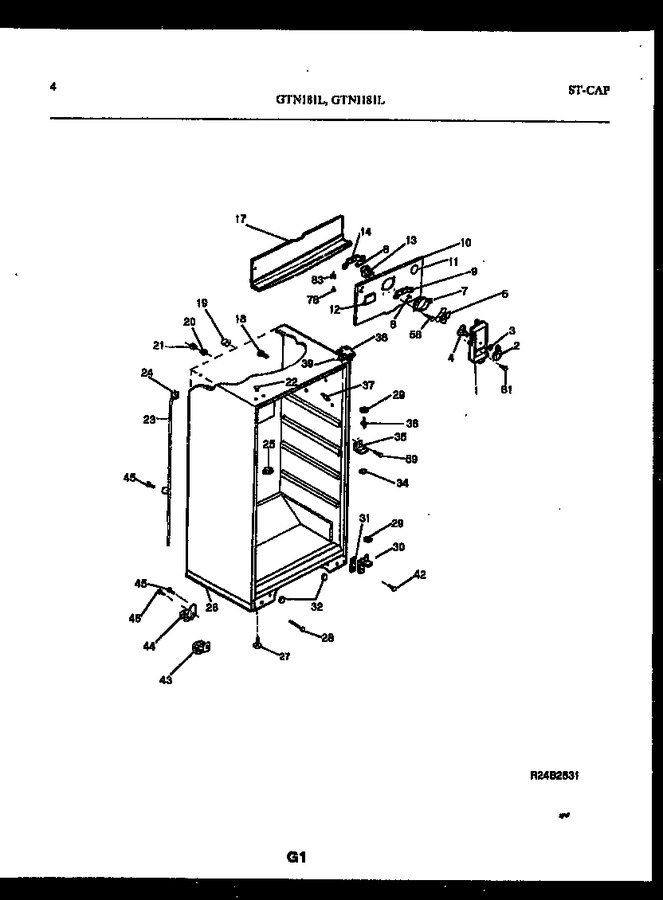

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303290438 | Cover-fan |
|
- | |||||
| 2 | 5308000081 | Knob - Damper Control |
|
$ 36.02 | |||||
| 3 | 5303001028 | Nut,push-on |
|
- | |||||
| 4 | 5303001331 | Damper-fan Cover |
|
$ 31.71 | |||||
| 5 | 5308000010 | Fan Blade |
|
Immediately | $ 49.03 | ||||
| 7 | 5308000124 | Ring-fan Orifice |
|
$ 53.58 | |||||
| 8 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 9 | 5303205118 | Bracket-motor Mtg, Front |
|
- | |||||
| 10 | 5308009771 | Cover-evap Coil |
|
- | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 45.50 | |||||
| 13 | 5300158289 | Motor-evap Fan |
|
Immediately | $ 149.94 | ||||
| 14 | 5303205119 | Bracket-motor Mtg, Rear |
|
- | |||||
| 17 | 5303001470 | Trough-drain |
|
- | |||||
| 10A | 5303209636 | Screw-coil Cover, Cr Pan Head, 8-15(a) X 5/8 (non-illus |
|
- |
