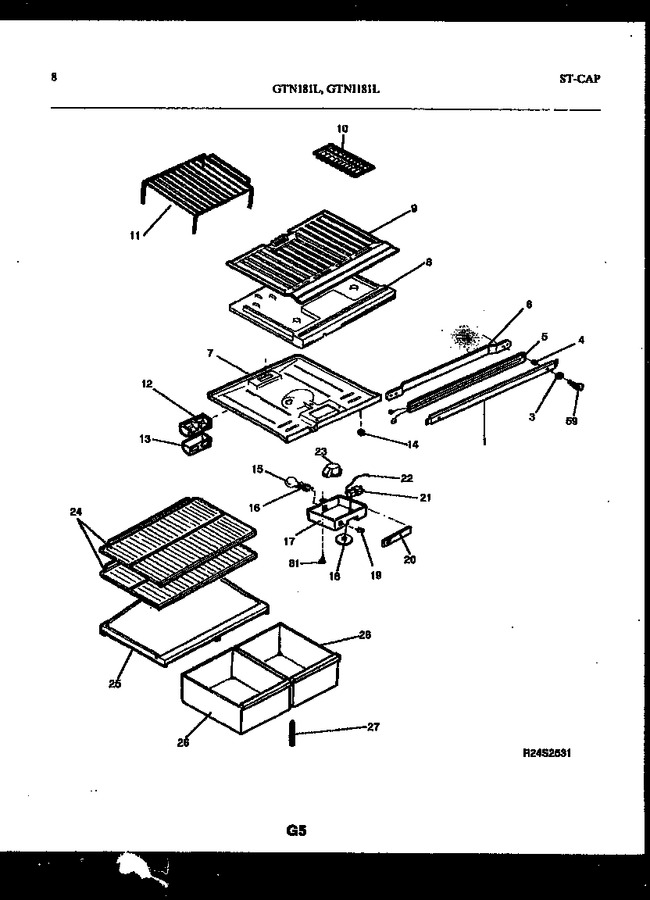

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303200370 | Mullion, Almond |
|
- | |||||
| 1 | 5303200366 | Mullion, White |
|
$ 70.04 | |||||
| 3 | 5303206754 | Washer No. 10 Flat, 7/32 X 7/16 Od, Steel |
|
- | |||||
| 4 | 5303200464 | Spacer-mullion Mtg, Steel |
|
- | |||||
| 5 | 5303210351 | Heater-mullion |
|
- | |||||
| 6 | 5308010008 | Strap-mullion Mtg |
|
- | |||||
| 7 | 5303001380 | Screw |
|
- | |||||
| 7 | 5303212518 | Bushing, Snap-in, Plastic (non-illustrated) |
|
- | |||||
| 7 | 5303016367 | Top Panel-refr, W/snap Bushing |
|
- | |||||
| 8 | 3001383 | Harness-wiring, Control/divider |
|
- | |||||
| 8 | 5303001504 | Divider, Styrofoam |
|
- | |||||
| 9 | 5303211427 | Bottom Panel-frzr |
|
- | |||||
| 10 | 5303001324 | Tray-ice, Plastic |
|
- | |||||
| 11 | 5303282284 | Shelf-freezer, ``table Style`` |
|
Immediately | $ 88.05 | ||||
| 12 | 5308000071 | Deflector-air |
|
- | |||||
| 13 | 5303001546 | Cover - Air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp |
|
- | |||||
| 16 | 5308000129 | Socket-light/lamp |
|
$ 62.16 | |||||
| 17 | 5303015152 | Box-control |
|
- | |||||
| 17 | 08016567 | Nut-anchor, Control Box Mtg (non-illustrated) |
|
- | |||||
| 18 | 5308010011 | Knob-temp Control |
|
- | |||||
| 19 | 5303001670 | Switch-energy Saver |
|
- | |||||
| 20 | 215263000 | Label-control Box |
|
- | |||||
| 21 | 5303200810 | Control-temperature |
|
$ 126.87 | |||||
| 21 | 5303001260 | Screw |
|
$ 6.73 |
