SELECT A DIAGRAM

01 - Cover

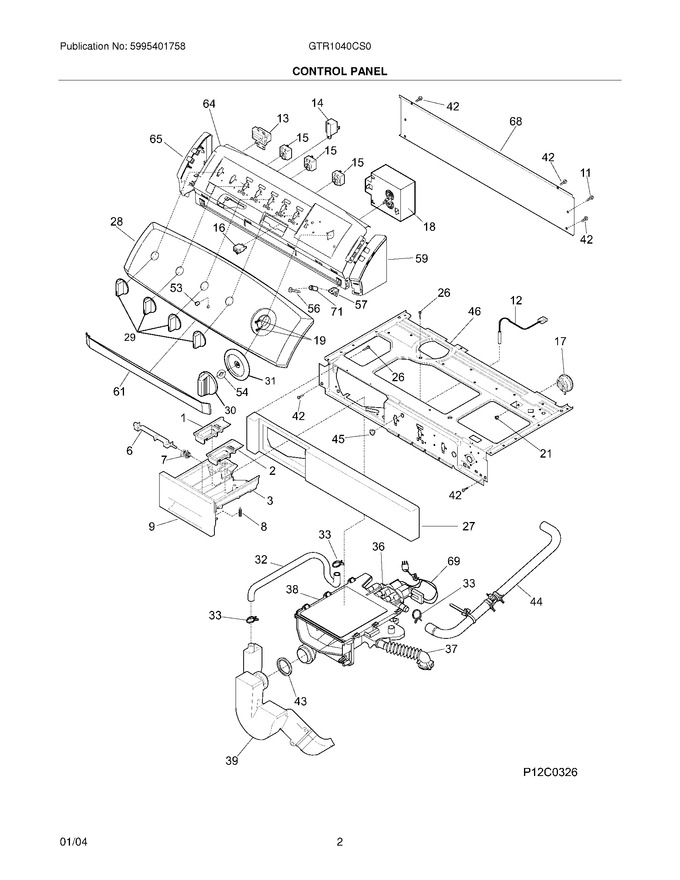

03 - Control Panel


05 - Cabinet/top


07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131272100		Cover-bleach				$ 42.50
2	131272000		Cover-softener				$ 71.66
3	131271910		Drawer,dispenser				$ 52.03
6	131714900		Latch,drawer Handle ,white				$ 44.94
7	131427500		Spring				$ 14.07
8	131373800		Magnet				$ 48.62
9	131729500		Handle,disp Drawer ,with Trim				$ 150.03
11	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
19	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
21	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
26	131823400		Screw,8-18 X 2.00				$ 1.42
27	131870600		Panel,disp Drawer Mt.				$ 204.49
28	134213700		Panel,trimplate ,console Front		Appelez-nous	-
29	131786603		Knob,rotary ,white/gray				$ 54.02
30	131118401		Knob-timer, White				$ 58.76
31	131118503		Pointer,timer Dial ,white ,gray Indicator				$ 27.54
32	131786100		Hose-dispenser				$ 66.62
33	134737300		Clamp   (Replaces: 131306216)				$ 20.13
37	131271600		Hose-tub				$ 90.01
39	131863300		Siphon				$ 30.96
42	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
43	131749200		Gasket-seal				$ 20.33
45	5303321107		Bushing,idler				$ 4.52
46	134191412		Panel,control Mtg. ,wing Bend				$ 168.89
53	131724800		Lens-pilot Light				$ 12.06
54	5308015493		Spacer-timer Shaft				$ 14.36
56	131266330		Screw,8-18 X 1.250				$ 7.63
57	131197000		Clip-console Mtg				$ 13.62
59	134019600		End Cap,white ,rh				$ 46.10
61	134019900		Closure,console Trim ,white ,front				$ 66.68
64	131993010		Bracket,control Mtg.		Appelez-nous	-
65	134019610		End Cap,white ,lh				$ 46.31
68	131992900		Panel,backsheet ,console				$ 72.66
71	134096100		Spacer,console Mtg				$ 13.55
F12	131505901		Switch-reed		Appelez-nous	-
F13	131891800		Switch,auto Temp ,4 Position		Appelez-nous	-
F14	131724500		Buzzer				$ 72.82
F15	131243200		Switch,temp/buz/xrinse ,2 Position		Appelez-nous	-
F16	131724700		Light-pilot				$ 59.59
F17	131273700		Switch-pressure		Appelez-nous	-
F18	137394200		Timer   (Replaces: 131802100)				$ 435.20
F36	131974700		Valve,dispenser ,w/seal			Immediately	$ 104.10
F38	131803710		Dispenser Assy,detergent				$ 339.83
F44	131899800		Thermistor,w/hose & Clamp		Appelez-nous	-
F69	131908000		Wiring Harness,dispenser Valve				$ 98.49
NI	131307900		Clamp,siphon/bellows				$ 11.34
NI	131931201		Dampener,vibration ,3.5 X 2 X 2 In. ,foam				$ 14.02
NI	134212000		Wiring Harness,controls		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
