SELECT A DIAGRAM
01 - Cooktop, Burner And Grate Parts

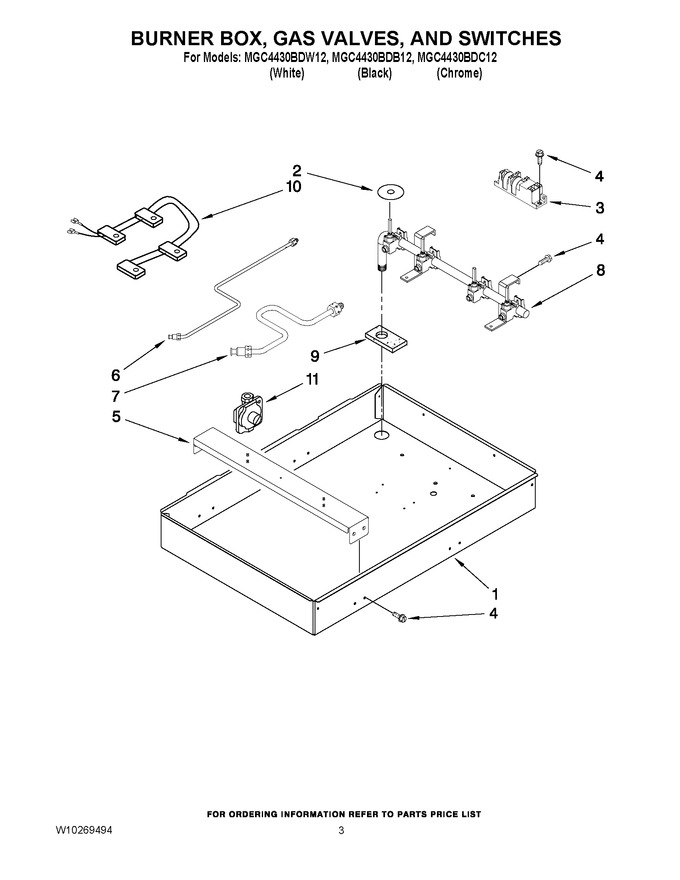

02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10204678 | Burner Box |
|
- | |||||
| 2 | WP74007705 | Seal, Valve Shaft (Replaces: 8008P065-60) |
|
Immediately | $ 6.80 | ||||
| 3 | WP7431P064-60 | Spark, Module (Replaces: 7431P064-60) |
|
$ 278.09 | |||||
| 4 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 5 | 3801F879-51 | Bracket, Orifice Holder (2) |
|
- | |||||
| 6 | 7506P375-60 | Tubing, Gas Burner (left) (2) |
|
$ 69.25 | |||||
| 7 | 7506P374-60 | Tubing, Gas Burner (right) (2) |
|
$ 101.62 | |||||
| 8 | 7513P357-60 | Pipe, Manifold (includes Valves) |
|
- | |||||
| 9 | WP74001380 | Seal, Manifold Pipe Inlet (Replaces: 7208P024-60) |
|
$ 58.91 | |||||
| 10 | W10138052 | Harness & Switches (Replaces: 7450P081-60) |
|
$ 195.08 | |||||
| 11 | W11170853 | Regulator, Pressure (Replaces: 7510P088-60) |
|
$ 283.08 |
