SELECT A DIAGRAM

01 - Cooktop, Burner And Grate Parts

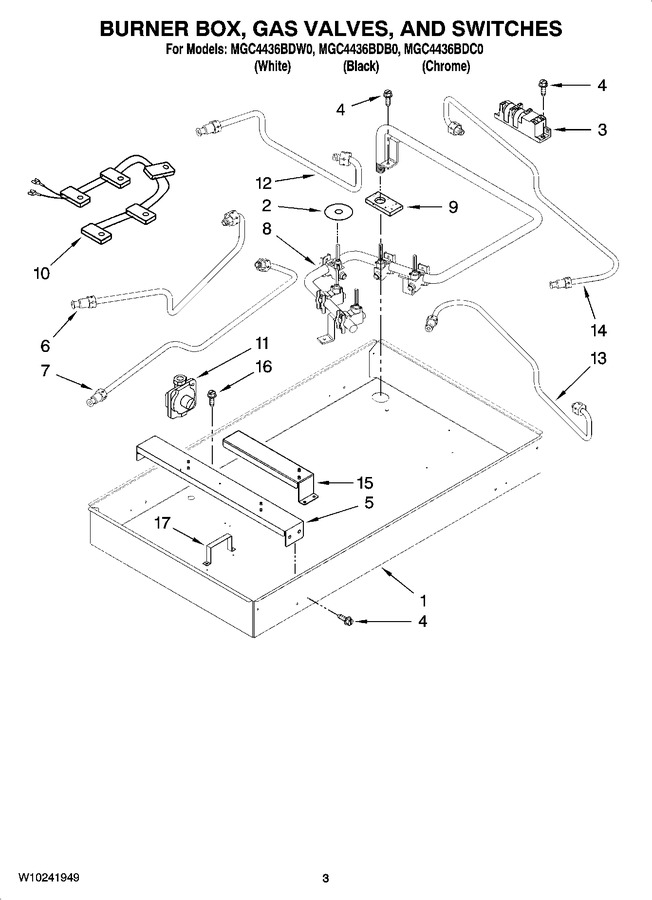

02 - Burner Box, Gas Valves, And Switches, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10181017		Burner Box		Appelez-nous	-
2	WP74007705		Seal, Valve Shaft   (Replaces: 74007705)			Immediately	$ 6.80
3	8215557		Spark Module   (Replaces: Y04100810)			Immediately	$ 124.99
4	WP90767		Screw   (Replaces: Y700502)			Immediately	$ 7.04
5	3801F755-51		Bracket, Orifice Holder (2)   (Replaces: 74007693)				$ 65.96
6	7506P362-60		Tubing, Gas (left Front)   (Replaces: 74007926)				$ 76.98
7	7506P363-60		Tubing, Gas (left Rear)   (Replaces: 74007927)		Appelez-nous	-
8	7513P522-60		Pipe, Manifold (includes Valves)		Appelez-nous	-
9	WP74001380		Seal, Manifold Pipe Inlet   (Replaces: 74001380)				$ 58.91
10	WPW10184468		Harness & Switches   (Replaces: W10184468)				$ 215.27
11	W11087445		Regulator, Pressure   (Replaces: 74007747)			Immediately	$ 177.34
12	7506P364-60		Tubing, Gas (center)   (Replaces: 74007928)		Appelez-nous	-
13	7506P365-60		Tubing, Gas (right Front)   (Replaces: 74007929)		Appelez-nous	-
14	7506P366-60		Tubing, Gas (right Rear)   (Replaces: 74007930)		Appelez-nous	-
15	3801F878-51		Bracket, Center Orifice Holder   (Replaces: 74007931)		Appelez-nous	-
16	WP71001171		Screw, Ground   (Replaces: 71001171)				$ 6.26
17	3801F933-51		Bracket, Support		Appelez-nous	-
NI	W10177768		Wire, Jumper (white)		Appelez-nous	-
NI	W10177769		Wire, Jumper (orange)		Appelez-nous	-
NI	3188867		Cord, Power   (Replaces: 74007903)				$ 168.08
NI	WP3801F935-51		Bracket, Mounting   (Replaces: W10165912)				$ 37.09
NI	WP7101P062-60		Screw   (Replaces: 7101P062-60)				$ 7.24
NI	8007P003-60		Strain Relief		Appelez-nous	-
NI	74010439		Wire Tie		Appelez-nous	-
NI	WP7509P103-60		Spud Kit   (Replaces: 74007788)				$ 129.47
NI	31552		Cleaner		Appelez-nous	-
NI	W10173479		Harness, Cooktop				$ 111.11

    View Diagram in Separate Window       Print Part List
