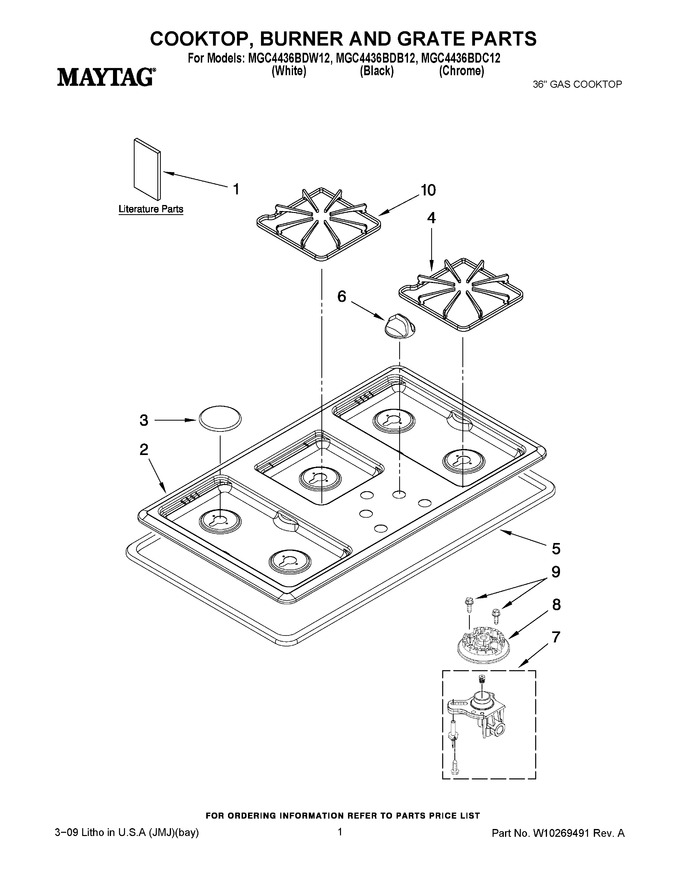

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | W10187822 | Installation Instructions |
|
- | |||||
| 1 | 8111P524-60 | Use & Care Guide |
|
- | |||||
| 1 | W10204418 | Wiring Diagram (english) |
|
- | |||||
| 1 | W10205174 | Wiring Diagram (french) |
|
- | |||||
| 2 | W10191059 | Cooktop (white) |
|
- | |||||
| 2 | W10191060 | Cooktop (chrome) |
|
- | |||||
| 2 | W10191062 | Cooktop (black) |
|
- | |||||
| 3 | WP74007925 | Cap, Burner (black) (Replaces: 7504P219-60) |
|
$ 86.81 | |||||
| 3 | WP74007752 | Cap, Burner (grey) (Replaces: 7504P205-60) |
|
$ 98.17 | |||||
| 4 | 7518P464-60 | Grate, Burner (4) (black) |
|
$ 76.35 | |||||
| 4 | 7518P465-60 | Grate, Burner (4) (grey) |
|
$ 75.17 | |||||
| 5 | 8270P107-60 | Seal, Foam |
|
- | |||||
| 6 | WP7733P381-60 | Knob, Control (5) (black) (Replaces: 7733P381-60) |
|
$ 17.05 | |||||
| 6 | WP7733P382-60 | Knob, Control (5) (white) (Replaces: 7733P382-60) |
|
$ 6.26 | |||||
| 7 | WP74007691 | Holder, Orifice (lr) (Replaces: 7527P007-60) |
|
Immediately | $ 107.26 | ||||
| 7 | WP7527P026-60 | Holder, Orifice (lf, Center, Rr) (Replaces: 7527P026-60) |
|
Immediately | $ 95.68 | ||||
| 7 | WP7527P028-60 | Holder, Orifice (rf) (Replaces: 7527P028-60) |
|
Immediately | $ 100.76 | ||||
| 8 | WPW10406797 | Head, Burner (Replaces: 8286182) |
|
$ 79.64 | |||||
| 9 | WP3368921 | Screw (Replaces: 7101P685-60) |
|
Immediately | $ 6.42 | ||||
| 10 | 7518P467-60 | Grate, Center (black) |
|
- | |||||
| 10 | 7518P468-60 | Grate, Center (grey) |
|
- |
