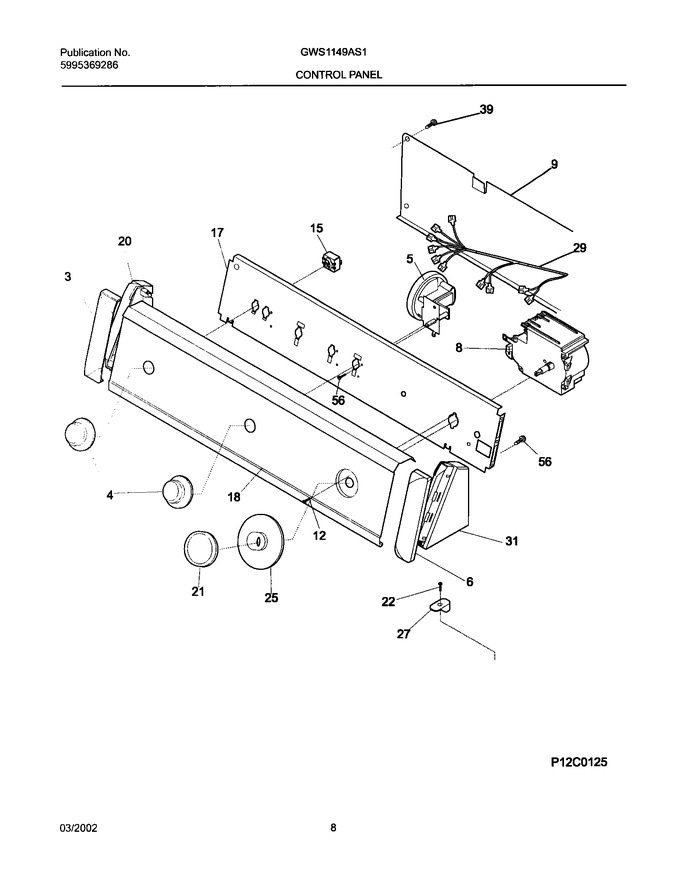

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	131122611		Cover-end Cap, White, Lh				$ 42.21
4	134886700		Knob-rotary   (Replaces: 131848601)				$ 60.01
5	134680100		Switch-pressure   (Replaces: 131396200)				$ 113.51
6	131122601		Cover-end Cap, White, Rh				$ 47.20
8	134063500		Timer Elec P Mallory Delta				$ 426.88
9	134088700		Backsheet-f Console		Appelez-nous	-
12	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
17	131580006		Bracket-control		Appelez-nous	-
18	134038700		Trimplate Gba1prsf		Appelez-nous	-
20	131122711		End Cap,white ,lh				$ 58.38
21	131985301		Knob-timer-white Soft T Gb1		Appelez-nous	-
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131984601		Pntr-timer-wht/gray Ind Gb1		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
31	131122701		End Cap, White, Rh				$ 53.29
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Drive				$ 10.46
F15	131081200		Switch-temperature		Appelez-nous	-
F29	134127500		Harness-f-j & P Emerson		Appelez-nous	-
