SELECT A DIAGRAM
01 - Body
02 - Supplemental Information
03 - Top Assembly
04 - Wiring Information
New Model Search:

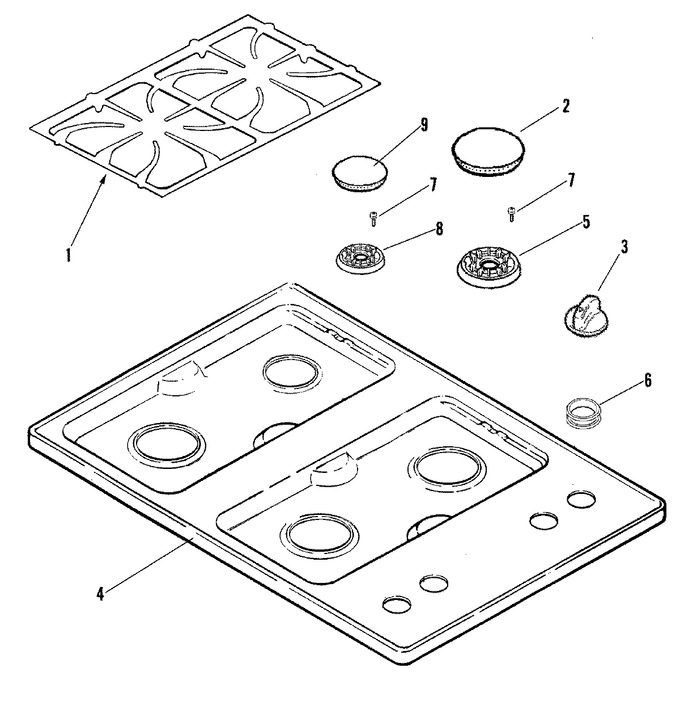

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74007789 | Grate (blk) | 10 |
|
$ 88.65 | ||||
| 1 | W10919249 | Bumper, Grate Bottom (Replaces: 74007356) | 10 |
|
Immediately | $ 11.30 | |||
| 1 | W10841140 | Sealer, Rtv Clear (Replaces: M0275597) | 10 |
|
Immediately | $ 24.92 | |||
| 2 | 74007749 | Cap, Burner (med-blk) | 10 |
|
$ 42.04 | ||||
| 3 | WP74011287 | Knob, Burner (blk) (Replaces: 74007794) | 10 |
|
Immediately | $ 21.94 | |||
| 3 | WP74011287 | Knob, Burner (blk) (Replaces: 74011287) | 12 |
|
Immediately | $ 21.94 | |||
| 4 | 74007781 | Top, Main (blk) | 10 |
|
- | ||||
| 5 | WPW10406797 | Base, Burner (Replaces: 74007698) | 10 |
|
$ 79.64 | ||||
| 6 | WP74007705 | Grommet (Replaces: 74007705) | 10 |
|
Immediately | $ 6.80 | |||
| 7 | W11772394 | Screw, Burner Base----s (Replaces: 74007714) | 10 |
|
Immediately | $ 10.94 | |||
| 8 | WPW10406243 | Base, Burner (5k) (Replaces: 74007411) | 10 |
|
Immediately | $ 33.50 | |||
| 9 | WP8284669 | Cap, Burner (smr-blk) (Replaces: 74007748) | 10 |
|
Immediately | $ 64.79 | |||
| 10 | 74007565 | Manual, Use & Care | 10 |
|
- |
