01 - Body
02 - Supplemental Information
03 - Top Assembly
04 - Wiring Information
New Model Search:

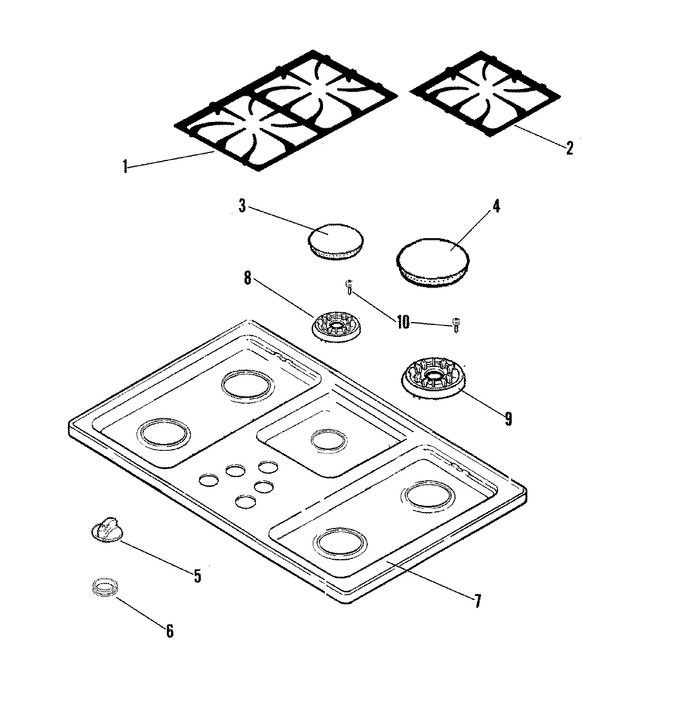

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74007790 | Grate (gry) | 10 |
|
$ 106.76 | ||||
| 1 | W10919249 | Bumper, Grate Bottom (Replaces: 74007356) | 10 |
|
Immediately | $ 11.30 | |||
| 2 | W10919249 | Bumper, Grate Bottom (Replaces: 74007356) | 10 |
|
Immediately | $ 11.30 | |||
| 2 | 74007809 | Grate (wht-ctr) | 10 |
|
- | ||||
| 3 | 74007422 | Cap, Burner (smr-gry) | 10 |
|
$ 30.56 | ||||
| 4 | WP74007752 | Cap, Burner (med-gry) (Replaces: 74007752) | 10 |
|
$ 98.17 | ||||
| 5 | WP74011276 | Knob, Burner (wht) (Replaces: 74007792) | 10 |
|
Immediately | $ 20.42 | |||
| 5 | WP74011276 | Knob, Burner (wht) (Replaces: 74011276) | 12 |
|
Immediately | $ 20.42 | |||
| 6 | WP74007705 | Grommet (Replaces: 74007705) | 10 |
|
Immediately | $ 6.80 | |||
| 7 | 74007805 | Top, Main (wht) | 10 |
|
- | ||||
| 8 | WPW10406243 | Base, Burner (5k) (Replaces: 74007411) | 10 |
|
Immediately | $ 33.50 | |||
| 9 | WPW10406797 | Base, Burner (Replaces: 74007698) | 10 |
|
$ 79.64 | ||||
| 10 | W11772394 | Screw, Burner Base (Replaces: 74007714) | 10 |
|
Immediately | $ 10.94 |
