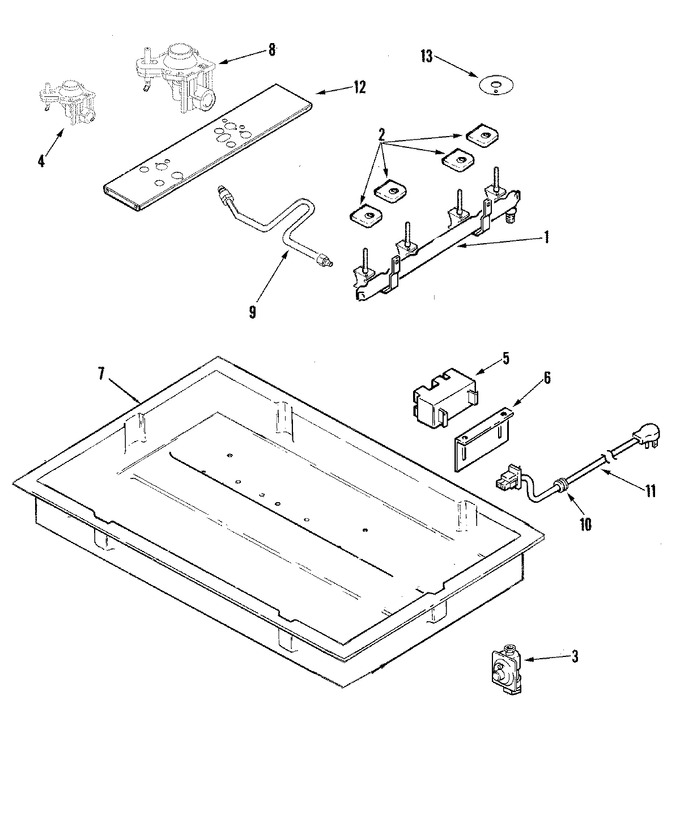

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP74001380		Seal, Manifold Pipe   (Replaces: 74001380)	10			$ 58.91
1	74008037		Pipe Manifold/valve Assembly	10	Appelez-nous	-
1	74009419		Manifold Pipe/valve Assembly	11			$ 242.73
2	WP74007696		Assy, Switch/lead Wire   (Replaces: 74007696)	10			$ 210.63
3	W11087445		Regulator, Pressure   (Replaces: 74007747)	10		Immediately	$ 177.34
4	WP8523793		Ignitor, Sourdillion Assy.   (Replaces: 74007473)	10		Immediately	$ 36.15
4	WP7527P023-60		Holder, Orifice (5k)   (Replaces: 74007816)	10			$ 98.03
5	8215557		Module, Spark (4+0)	16		Immediately	$ 124.99
5	WP7431P064-60		Spark, Module   (Replaces: 7431P064-60)	18			$ 278.09
5	8215557		Module, Spark (4+0)   (Replaces: 74004283)	10		Immediately	$ 124.99
6	3807F753-51		Bracket, Spark Module	17	Appelez-nous	-
6	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
6	74007795		Bracket, Spark Module	10	Appelez-nous	-
7	W10176505		Bottom, Burner Box	18	Appelez-nous	-
7	74009423		Bottom, Burner Box	11	Appelez-nous	-
7	74008036		Bottom, Burner Box	10	Appelez-nous	-
8	WP7527P028-60		Holder, Orifice (12.5k)   (Replaces: 74007813)	10		Immediately	$ 100.76
8	WP7527P026-60		Holder, Orifice (9.5k)   (Replaces: 74007814)	10		Immediately	$ 95.68
9	74007695		Tube, Burner (lt)	10			$ 37.61
9	74007694		Tube, Burner (rt)	10			$ 55.36
10	550707		Bushing - Strain Relief	10	Appelez-nous	-
11	74007817		Cord, Power	10	Appelez-nous	-
12	74009252		Screw, Hex Head	11	Appelez-nous	-
12	74009251		Bracket, Orifice Holder	11	Appelez-nous	-
12	74008038		Bracket, Orifice Holder	10	Appelez-nous	-
12	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
13	WP8008P071-60		Grommet (blk)   (Replaces: 74009421)	11			$ 8.02
13	WP74008212		Cover, Valve Switch   (Replaces: 74008212)	10			$ 6.88

    View Diagram in Separate Window       Print Part List
