01 - Body
02 - Supplemental Information

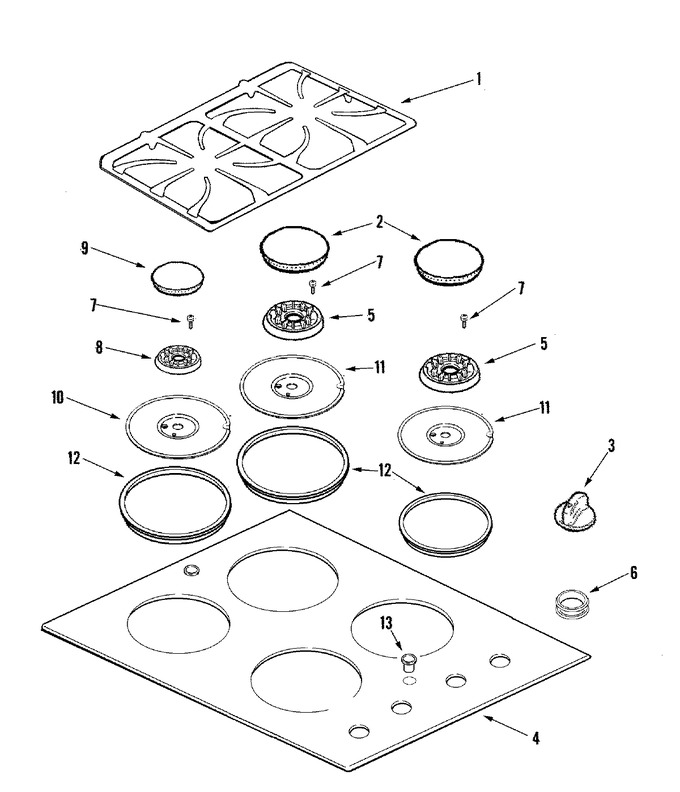

03 - T0p Assembly
04 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74008043 | Grate (gry) | 10 |
|
$ 119.68 | ||||
| 1 | W10919249 | Bumper, Grate Bottom (Replaces: 74007356) | 10 |
|
Immediately | $ 11.30 | |||
| 2 | WP74007752 | Cap, Burner (med-gry) (Replaces: 74007752) | 10 |
|
$ 98.17 | ||||
| 3 | WP74011276 | Knob, Burner (wht) (Replaces: 74011276) | 12 |
|
Immediately | $ 20.42 | |||
| 3 | WP74011276 | Knob, Burner (wht) (Replaces: 74007792) | 10 |
|
Immediately | $ 20.42 | |||
| 4 | 74008054 | Top Assembly (wht) | 10 |
|
- | ||||
| 4 | 12400041 | Seal, Tape | 10 |
|
$ 48.39 | ||||
| 5 | WPW10406797 | Base, Burner (Replaces: 74007698) | 10 |
|
$ 79.64 | ||||
| 6 | 8008P039-60 | Grommet, Glass | 10 |
|
- | ||||
| 7 | W11772394 | Screw, Burner Base (Replaces: 74007714) | 10 |
|
Immediately | $ 10.94 | |||
| 8 | WPW10406243 | Base, Burner (5k) (Replaces: 74007411) | 10 |
|
Immediately | $ 33.50 | |||
| 9 | 74007422 | Cap, Burner (smr-gry) | 10 |
|
$ 30.56 | ||||
| 10 | 74008040 | Pan, Burner (wht-smr) | 10 |
|
- | ||||
| 11 | 74008042 | Pan, Burner (wht-lrg) | 10 |
|
- | ||||
| 12 | 8270P099-60 | Tape | 10 |
|
- | ||||
| 13 | 74007980 | Grommet, Grate Foot (wht) | 10 |
|
$ 18.96 | ||||
| 13 | 74007983 | Ring, Retaining | 10 |
|
$ 13.45 | ||||
| 13 | 74007982 | Washer | 10 |
|
$ 6.44 |
