SELECT A DIAGRAM

01 - Body


02 - Supplemental Information


03 - T0p Assembly


04 - Wiring Information

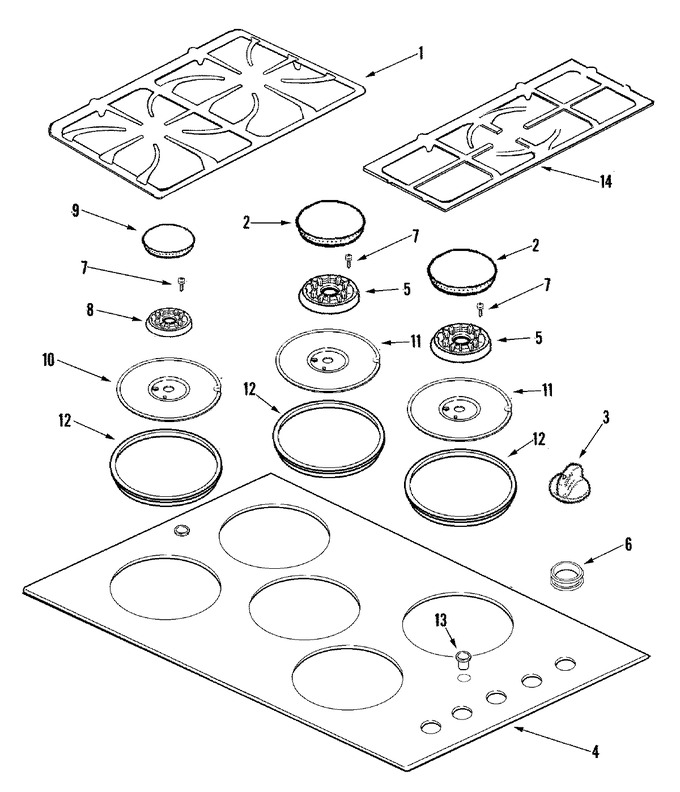

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74008044		Grate (blk)	10			$ 96.46
1	W10919249		Bumper, Grate Bottom   (Replaces: 74007356)	10		Immediately	$ 11.30
2	WP74007925		Cap, Burner (med-blk)   (Replaces: 74007925)	10			$ 86.81
3	WP74011287		Knob, Burner (blk)   (Replaces: 74011287)	12		Immediately	$ 21.94
3	WP74011287		Knob, Burner (blk)   (Replaces: 74007794)	10		Immediately	$ 21.94
4	74008053		Top Assembly (blk)	10	Appelez-nous	-
4	12400041		Seal, Tape	10			$ 48.39
5	WPW10406797		Base, Burner   (Replaces: 74007698)	10			$ 79.64
6	8008P039-60		Grommet, Glass	10	Appelez-nous	-
7	W11772394		Screw, Burner Base   (Replaces: 74007714)	10		Immediately	$ 10.94
8	WPW10406243		Base, Burner (5k)   (Replaces: 74007411)	10		Immediately	$ 33.50
9	WP3191898		Cap, Burner (smr-blk)   (Replaces: 74007416)	10			$ 60.86
10	74008039		Pan, Burner (blk-smr)	10	Appelez-nous	-
11	74008041		Pan, Burner (blk-lrg)	10	Appelez-nous	-
12	12400041		Seal, Tape	10			$ 48.39
13	74007982		Washer	10			$ 6.44
13	74007983		Ring, Retaining	10			$ 13.45
13	74007981		Grommet, Grate Foot (blk)	10			$ 21.17
14	74008046		Grate (ctr-blk)	10	Appelez-nous	-
