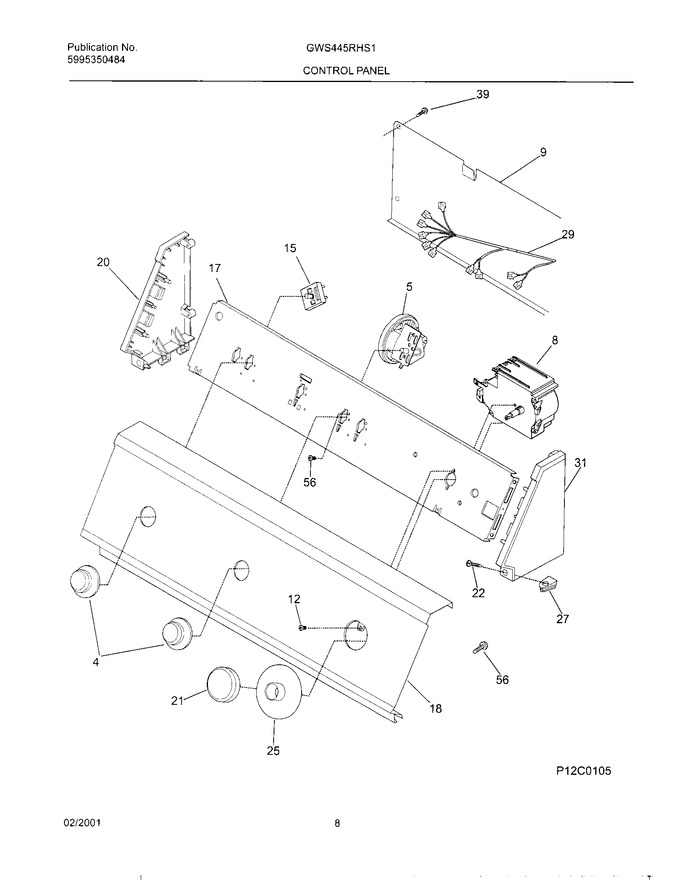

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	134886700		Knob-rotary   (Replaces: 131848601)				$ 60.01
5	134680100		Switch-pressure   (Replaces: 131396200)				$ 113.51
8	131773900		Timer-washer		Appelez-nous	-
9	5303205838		Backsheet-console		Appelez-nous	-
12	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
15	131081200		Switch-temperature		Appelez-nous	-
17	131580006		Bracket-control		Appelez-nous	-
18	134013100		Trimplate Dw/gws445rhs		Appelez-nous	-
20	5303291343		End Cap, White, Lh		Appelez-nous	-
21	131985301		Knob-timer-white Soft T Gb1		Appelez-nous	-
22	131266310		Screw-end Cap, Poh Ab Wht Hd, 8-18 X 1.250		Appelez-nous	-
25	131984601		Pntr-timer-wht/gray Ind Gb1		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
29	131986800		Harness P		Appelez-nous	-
31	5303291351		End Cap, White, Rh		Appelez-nous	-
39	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Drive				$ 10.46

    View Diagram in Separate Window       Print Part List
