SELECT A DIAGRAM

Diagram for 01 - Cover
01 - Cover

Diagram for 02 - Cabinet, Top Panel, Base
02 - Cabinet, Top Panel, Base

Diagram for 03 - Tubs, Hoses, Motor
03 - Tubs, Hoses, Motor

Diagram for 04 - Transmission
04 - Transmission

Diagram for 05 - Console & Controls
05 - Console & Controls


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3205898 Backsheet Appelez-nous -
2 131205100 Screw In-Stock Immediately $ 14.18

3 131238200 Timer Appelez-nous -
4 3161188 Screw Appelez-nous -
5 131237300 Switch-pressure Appelez-nous -
6 131168200 Screw In-Stock Immediately $ 14.18

7 131120400 Switch - Speed Appelez-nous -
9 131081200 Switch-temperature Appelez-nous -
12 5303291343 End Cap-l.h. Appelez-nous -
13 5303291351 End Cap-r.h. Appelez-nous -
14 5303297854 Screw Appelez-nous -
15 131030501 Pointer Appelez-nous -
16 131030401 Knob - Timer Special Order $ 49.23

18 131310300 Panel-control Appelez-nous -
19 131297306 Bracket-controls Appelez-nous -
20 131166200 Harness Appelez-nous -
21 131243800 Screw - Grd - Top Panel Special Order $ 10.46

24 131032501 Knob-rotary-white Appelez-nous -
25 5308015493 Spacer-timer Shaft Special Order $ 14.36

26 131197000 Clip Special Order $ 13.62

*37322 131168200 Screw-grd-body In-Stock Immediately $ 14.18


    View Diagram in Separate Window     Print Icon   Print Part List

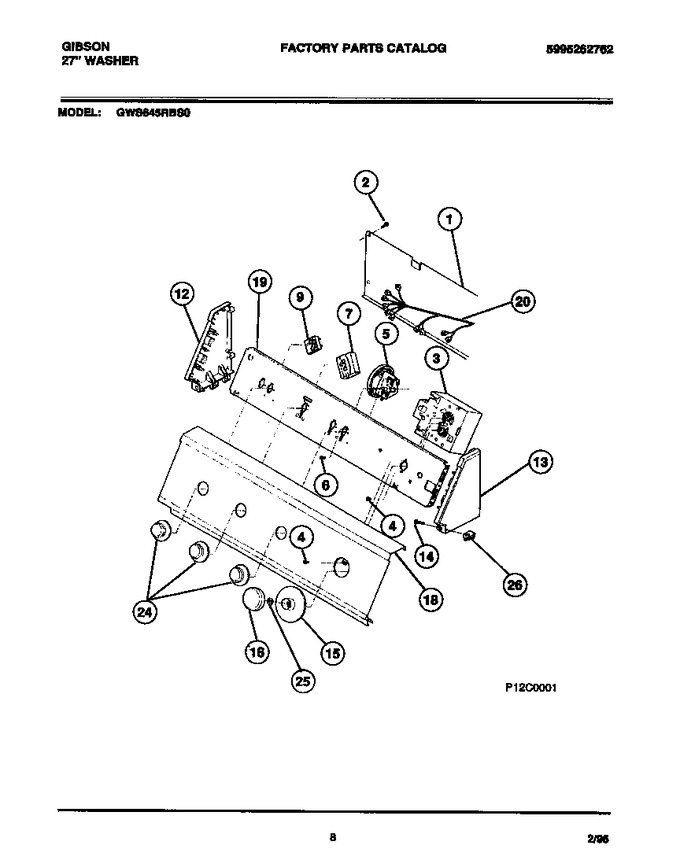

Diagram for GWS645RBS0
