01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts (not Included)

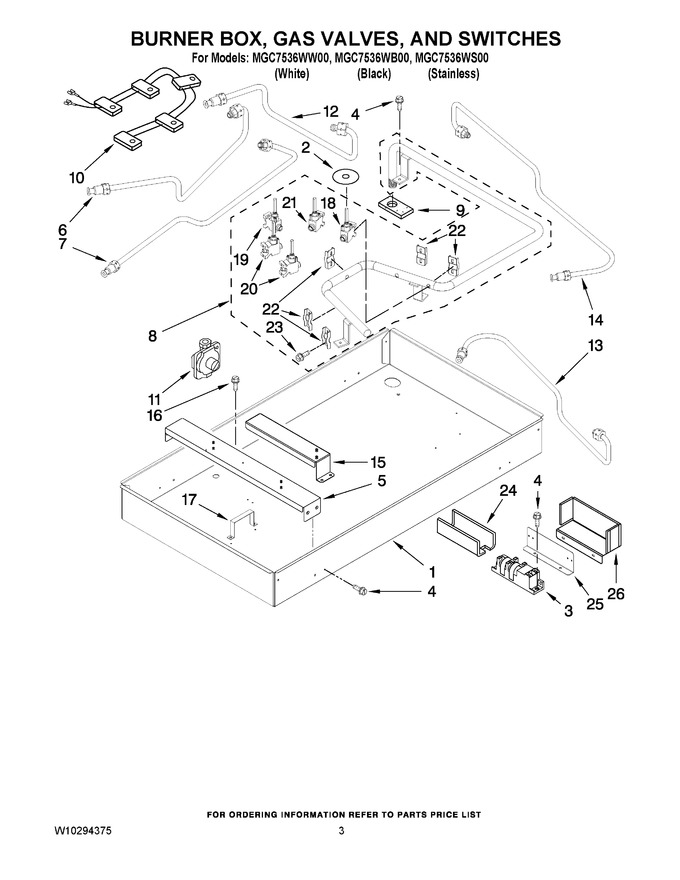

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10268428		Burner Box		Appelez-nous	-
2	WP74007705		Seal, Valve Shaft   (Replaces: 8008P065-60)			Immediately	$ 6.80
3	WPW10110486		Spark Module   (Replaces: W10110489)				$ 285.33
4	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
5	3801F877-51		Bracket, Orifice Holder (2)		Appelez-nous	-
6	7506P343-60		Tubing, Gas (left Front)				$ 75.87
7	7506P344-60		Tubing, Gas (left Rear)				$ 31.21
8	W10268435		Pipe, Manifold (includes Valves)		Appelez-nous	-
9	WP74001380		Seal, Manifold Pipe Inlet   (Replaces: 7208P024-60)				$ 58.91
10	W10268398		Harness & Switches				$ 92.60
11	W11087445		Regulator,pressure   (Replaces: 7510P093-60)			Immediately	$ 177.34
12	7506P345-60		Tubing, Gas (center)				$ 75.87
13	7506P346-60		Tubing, Gas (right Front)				$ 76.69
14	7506P347-60		Tubing, Gas (right Rear)				$ 77.34
15	3801F876-51		Bracket, Center Orifice Holder		Appelez-nous	-
16	WP71001171		Screw, Ground   (Replaces: 7101P460-60)				$ 6.26
17	3801F925-51		Bracket, Support		Appelez-nous	-
18	7502P555-60		Valve, Saddle				$ 229.39
19	7502P557-60		Valve, Saddle				$ 229.39
20	W10268439		Valve, Saddle		Appelez-nous	-
21	W10268440		Valve, Saddle		Appelez-nous	-
22	8405P028-60		Bracket, Valve		Appelez-nous	-
23	WPW10001160		Screw   (Replaces: 7101P550-60)				$ 8.86
24	W10244689		Insulation,spark		Appelez-nous	-
25	W10319059		Bracket, Spark   (Replaces: W10268387)		Appelez-nous	-
26	W10268420		Shield, Spark		Appelez-nous	-
