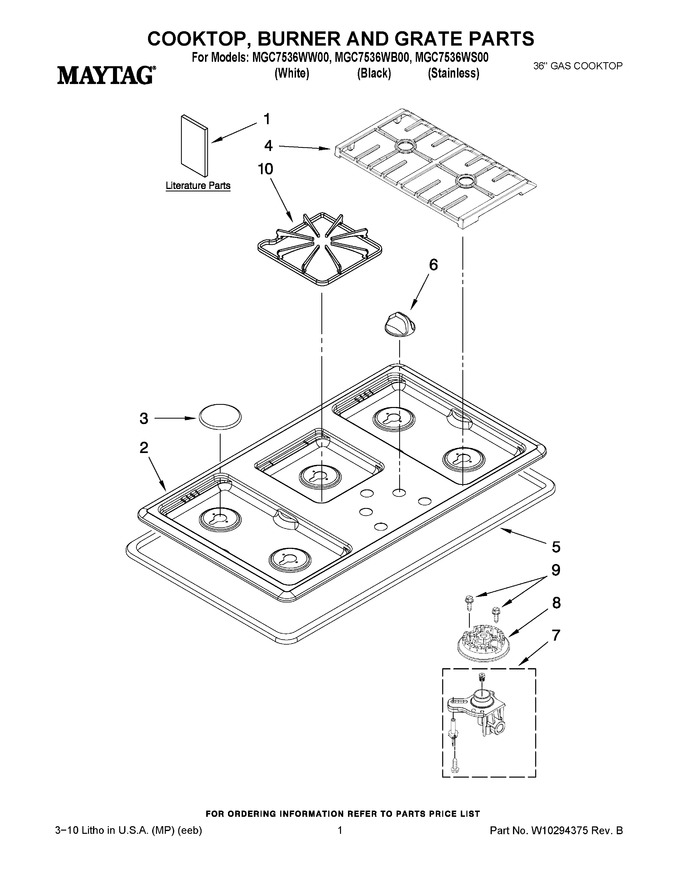

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10268392 | Installation Instructions |
|
- | |||||
| 1 | W10268391 | Use & Care Guide |
|
- | |||||
| 1 | W10268419 | Wiring Diagram (english) |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | W10268425 | Instructions Conversion |
|
- | |||||
| 2 | W10244705 | Cooktop (stainless) |
|
$ 204.32 | |||||
| 2 | W10244703 | Cooktop (black) |
|
- | |||||
| 2 | W10244708 | Cooktop (white) |
|
- | |||||
| 3 | W10169973 | Cap, Burner (grey(rf)) |
|
$ 86.36 | |||||
| 3 | WPW10183370 | Cap, Burner (black(cr)) (Replaces: W10183370) |
|
$ 58.28 | |||||
| 3 | WPW10183371 | Cap, Burner (black(lf/rr/lr)) (Replaces: W10183371) |
|
$ 93.15 | |||||
| 3 | WPW10183368 | Cap, Burner (black(rf)) (Replaces: W10183368) |
|
$ 76.69 | |||||
| 3 | WPW10169975 | Cap, Burner (grey(cr)) (Replaces: W10169975) |
|
$ 60.70 | |||||
| 3 | WPW10173832 | Cap, Burner (grey(lf/rr/lr)) (Replaces: W10173832) |
|
$ 68.26 | |||||
| 4 | W10244664 | Grates, Burner (set Of 2) (grey(l/r)) |
|
- | |||||
| 4 | W10244663 | Grates, Burner (set Of 2) (black(l/r)) |
|
$ 130.49 | |||||
| 5 | 8270P107-60 | Seal, Foam |
|
- | |||||
| 6 | WPW10268448 | Knob, Control (5) (stainless) (Replaces: W10268448) |
|
Immediately | $ 21.50 | ||||
| 6 | WPW10244630 | Knob, Control (5) (white) (Replaces: W10244630) |
|
$ 18.87 | |||||
| 6 | W10244629 | Knob, Control (5) (black) |
|
$ 16.59 | |||||
| 7 | WPW10244711 | Holder, Orifice (rf) (Replaces: W10244711) |
|
$ 95.40 | |||||
| 7 | W10244710 | Holder, Orifice (rr) |
|
$ 103.49 | |||||
| 7 | WP7527P023-60 | Holder, Orifice (cr) (Replaces: 7527P023-60) |
|
$ 98.03 | |||||
| 7 | WPW10244714 | Holder, Orifice (lf) (Replaces: W10244714) |
|
$ 104.54 | |||||
| 7 | WP7527P026-60 | Holder, Orifice (lr) (Replaces: 7527P026-60) |
|
Immediately | $ 95.68 | ||||
| 8 | WPW10406878 | Head, Burner (rf) (Replaces: 8286183) |
|
Immediately | $ 92.12 | ||||
| 8 | WPW10406797 | Head, Burner (lf,rr,lr) (Replaces: 8286182) |
|
$ 79.64 | |||||
| 8 | WPW10406243 | Head, Burner (cr) (Replaces: 8286181) |
|
Immediately | $ 33.50 | ||||
| 9 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 10 | W10244674 | Grate, Center (grey) |
|
- | |||||
| 10 | W10244673 | Grate, Center (black) |
|
$ 81.85 |
