01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches

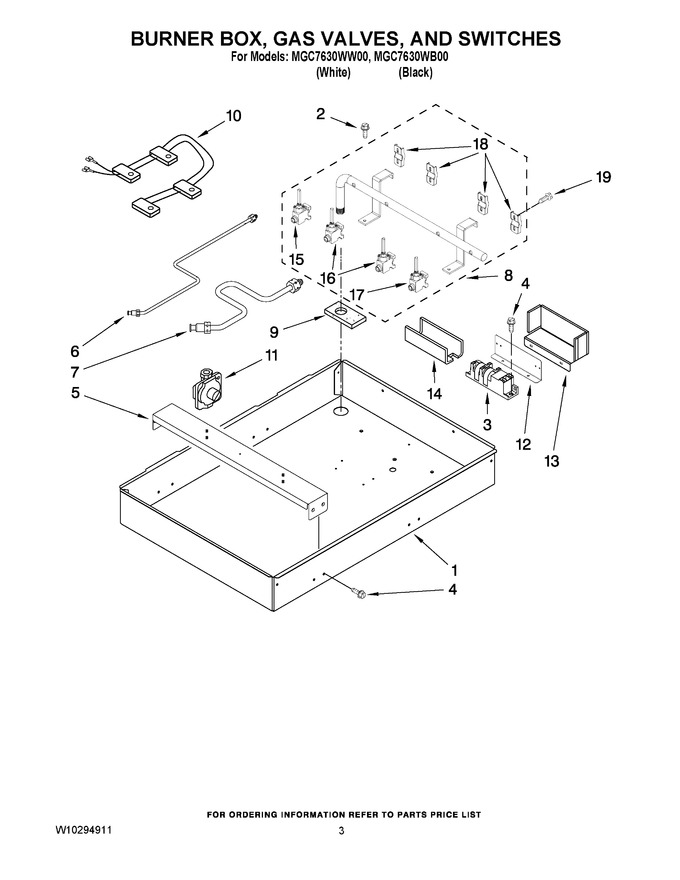

03 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10268405 | Burner Box |
|
- | |||||
| 2 | 7101P622-60 | Screw |
|
- | |||||
| 3 | WPW10110491 | Spark Module (Replaces: W10110488) |
|
Immediately | $ 276.35 | ||||
| 4 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 5 | 3801F849-51 | Bracket, Orifice Holder (2) |
|
- | |||||
| 6 | 7506P375-60 | Tubing, Gas Burner (left) (2) |
|
$ 69.25 | |||||
| 7 | 7506P374-60 | Tubing, Gas Burner (right) (2) |
|
$ 101.62 | |||||
| 8 | W10268436 | Pipe, Manifold (includes Valves) |
|
- | |||||
| 9 | WP74001380 | Seal, Manifold Pipe Inlet (Replaces: 7208P024-60) |
|
$ 58.91 | |||||
| 10 | WPW10268397 | Harness & Switches (Replaces: W10268397) |
|
$ 205.07 | |||||
| 11 | W11087445 | Regulator,pressure (Replaces: 7510P093-60) |
|
Immediately | $ 177.34 | ||||
| 12 | W10319059 | Bracket, Spark (Replaces: W10268387) |
|
- | |||||
| 13 | W10268420 | Shield, Spark |
|
- | |||||
| 14 | W10244688 | Insulation, Spark |
|
- | |||||
| 15 | 7502P557-60 | Valve, Gas |
|
$ 229.39 | |||||
| 16 | 7502P549-60 | Valve, Gas |
|
$ 229.44 | |||||
| 17 | W10268441 | Valve, Gas |
|
- | |||||
| 18 | 8405P028-60 | Bracket, Valve |
|
- | |||||
| 19 | WPW10001160 | Screw (Replaces: 7101P550-60) |
|
$ 8.86 |
