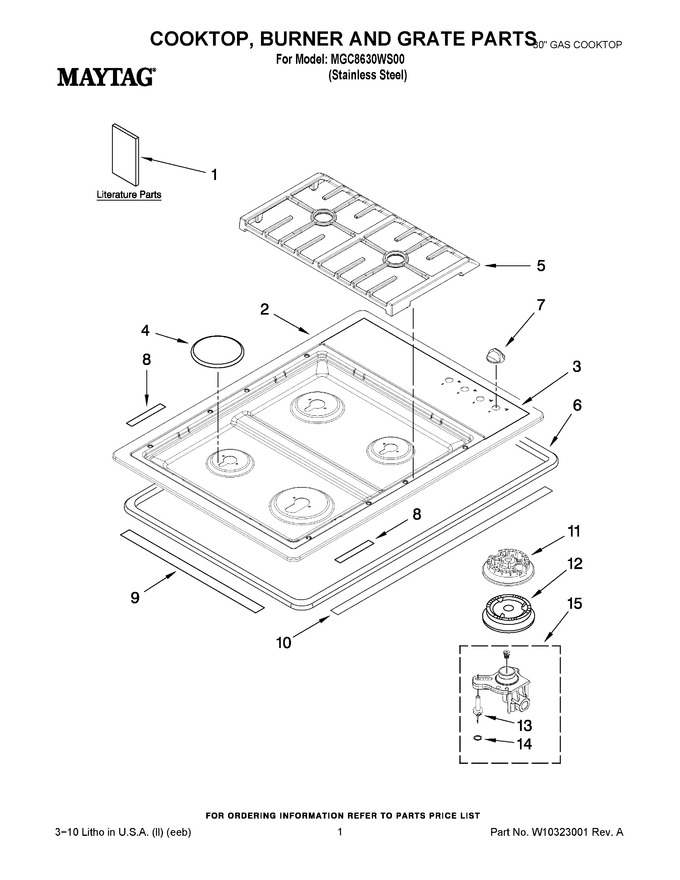

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9761893 | Installation Instructions |
|
- | |||||
| 1 | W10251095 | Use & Care Guide |
|
- | |||||
| 1 | 9762236 | Lp Conversion Instructions |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | 8190934 | Cooktop |
|
- | |||||
| 3 | W10285015 | Panel, Control |
|
- | |||||
| 4 | 8190895 | Cap, Burner (lf) |
|
- | |||||
| 4 | WP8190893 | Cap, Burner (rf - Lr) (Replaces: 8190893) |
|
$ 60.61 | |||||
| 4 | WP8190894 | Cap, Burner (rr) (Replaces: 8190894) |
|
$ 64.03 | |||||
| 5 | W10285021 | Grate (2) |
|
$ 218.87 | |||||
| 6 | 8190936 | Frame, Top |
|
- | |||||
| 7 | W10285026 | Knob, Control (4) |
|
$ 92.16 | |||||
| 8 | 8190903 | Seal, Foam (4) 3/8 X 1/2 X 5.5`` |
|
- | |||||
| 9 | 8190905 | Seal, Foam (2) 1/8 X 1/2 X 18`` |
|
$ 44.36 | |||||
| 10 | 8190907 | Seal, Foam (2) 1/8 X 1/2 X 27`` |
|
- | |||||
| 11 | 8190897 | Head, Burner (rr) |
|
$ 190.51 | |||||
| 11 | WP8190898 | Head, Burner (lf) (Replaces: 8190898) |
|
$ 184.97 | |||||
| 11 | WP8190896 | Head, Burner (rf-lr) (Replaces: 8190896) |
|
$ 150.16 | |||||
| 12 | 8190901 | Base, Burner (lf) |
|
$ 177.52 | |||||
| 12 | 8190899 | Base, Burner (rf-lr) |
|
$ 149.35 | |||||
| 12 | 8190900 | Base, Burner (rr) |
|
$ 157.66 | |||||
| 13 | 8190892 | Ignitor, Surf (4) |
|
$ 32.43 | |||||
| 14 | 8190904 | Clip, Spring (4) |
|
$ 8.56 | |||||
| 15 | 8190932 | Holder, Orifice (lf) |
|
- | |||||
| 15 | 8190931 | Holder, Orifice (rr) |
|
- | |||||
| 15 | 8190930 | Holder, Orifice (rf-lr) |
|
- | |||||
| NI | 8190943 | Harness, Wire |
|
- | |||||
| NI | 8190933 | Ignitor Wire Kit |
|
$ 58.80 |
