01 - Cooktop, Burner And Grate Parts

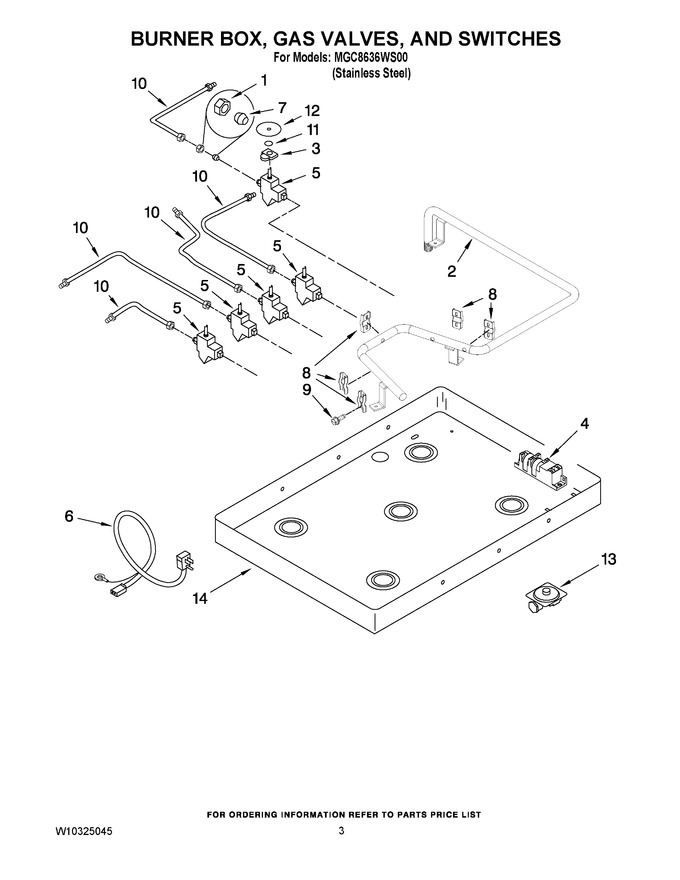

02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8190918		Nut, Compression		Appelez-nous	-
2	8190910		Pipe, Manifold		Appelez-nous	-
3	WP8190913		Switch, Spark (5)   (Replaces: 8190913)				$ 150.64
4	W11601369		Spark Module (5)   (Replaces: 8190929)			Immediately	$ 60.62
5	8190914		Valve, Burner (rf-lr 9000(orange))		Appelez-nous	-
5	8190916		Valve, Burner (cntr 1500 (yellow))		Appelez-nous	-
5	8190915		Valve, Burner (rr-lf 1200 (green))		Appelez-nous	-
6	8190925		Power Cord		Appelez-nous	-
7	8190917		Sleeve, Compresson		Appelez-nous	-
8	W10285016		Bracket, Valve		Appelez-nous	-
9	W10285017		Screw, Valve Brckt		Appelez-nous	-
10	8190919		Tubing, Burner (rr)		Appelez-nous	-
10	8190922		Tubing, Burner (lr)		Appelez-nous	-
10	8190921		Tubing, Burner (center)		Appelez-nous	-
10	8190920		Tubing, Burner (rf)		Appelez-nous	-
10	8190923		Tubing, Burner (lf)		Appelez-nous	-
11	8190912		Clip, Spring (4)		Appelez-nous	-
12	8190911		Washer (4) (spark Switch)		Appelez-nous	-
13	8190926		Regulator, Pressure				$ 135.67
14	W10285019		Box, Burner		Appelez-nous	-
