SELECT A DIAGRAM

01 - Cover


02 - Cabinet/top


03 - Motor/tub


04 - Transmission


05 - Control Panel

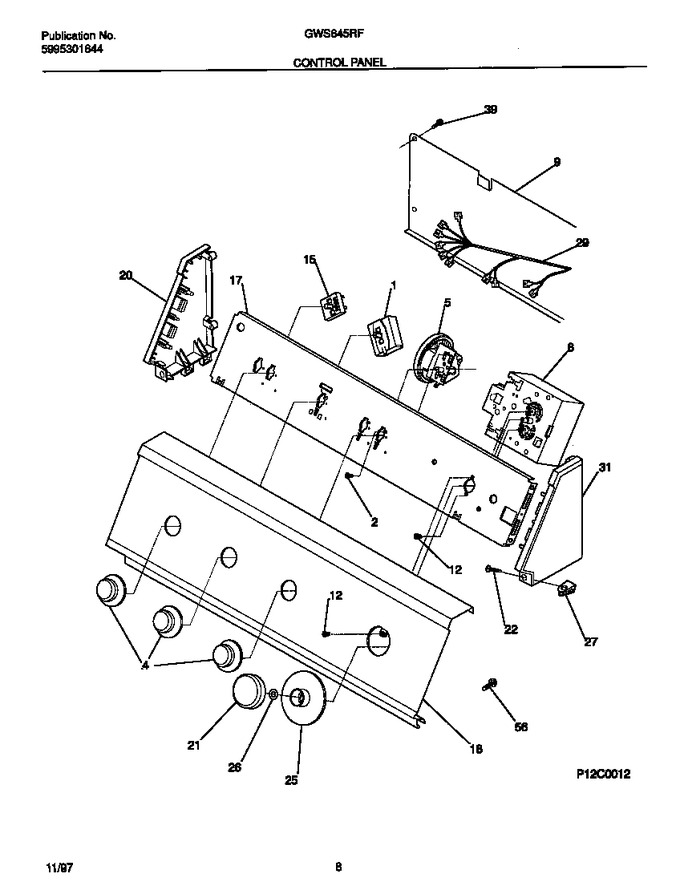

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131120400		Switch - Speed		Appelez-nous	-
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
4	131032501		Knob-rotary, White/gray		Appelez-nous	-
5	134680100		Switch-pressure   (Replaces: 131396200)				$ 113.51
8	131437000		Timer-washer				$ 360.26
9	3205898		Backsheet-console		Appelez-nous	-
12	3161188		Screw-timer		Appelez-nous	-
15	131081200		Switch-temperature		Appelez-nous	-
17	131297306		Bracket-controls		Appelez-nous	-
18	131310300		Panel-control,white		Appelez-nous	-
20	5303291343		End Cap, White, Lh		Appelez-nous	-
21	131030401		Knob-timer, White				$ 49.23
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131030501		Dial, White/gray		Appelez-nous	-
26	5308015493		Spacer-timer Shaft				$ 14.36
27	131197000		Clip-control Panel				$ 13.62
29	131653800		Harness-main		Appelez-nous	-
31	5303291351		End Cap, White, Rh		Appelez-nous	-
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw, Pan Hd Locking, 8-32ca X 0.375, Cr/sq Drive				$ 10.46

    View Diagram in Separate Window       Print Part List
