01 - Cover


02 - Cabinet/top


03 - Motor/tub


04 - Transmission

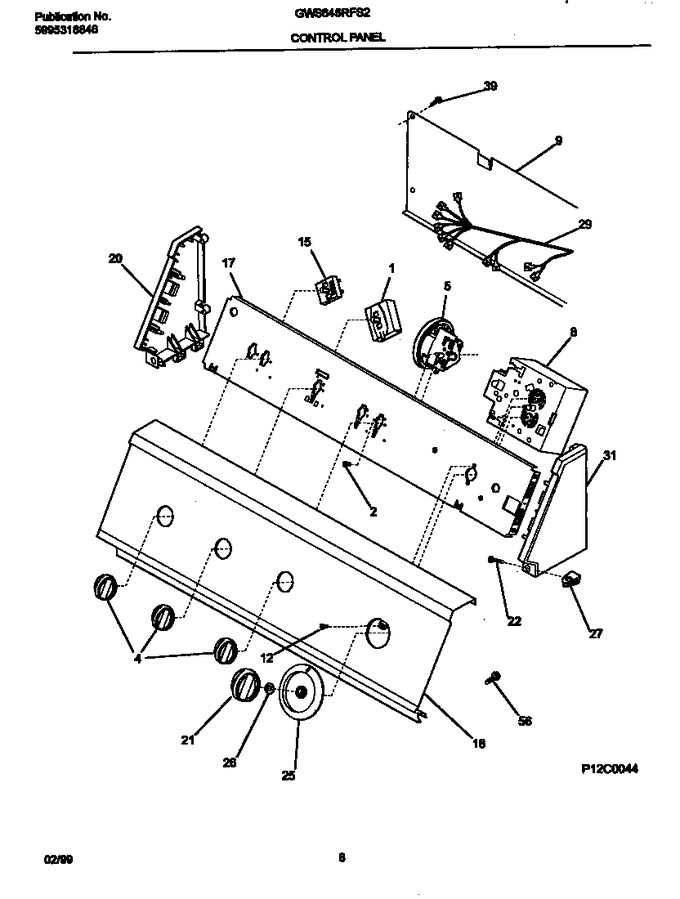

05 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131120400		Switch - Speed		Appelez-nous	-
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
4	131032501		Knob-rotary, White/gray		Appelez-nous	-
5	134680100		Switch-pressure   (Replaces: 131396200)				$ 113.51
8	131437000		Timer-washer				$ 360.26
9	5303205838		Backsheet-console		Appelez-nous	-
12	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
15	131081200		Switch-temperature		Appelez-nous	-
17	131728900		Bracket-controls		Appelez-nous	-
18	131310300		Panel-control,white		Appelez-nous	-
20	5303291343		End Cap, White, Lh		Appelez-nous	-
21	131030401		Knob-timer, White				$ 49.23
22	131266310		Screw-end Cap, Poh Ab Wht Hd, 8-18 X 1.250		Appelez-nous	-
25	131030501		Dial, White/gray		Appelez-nous	-
26	5308015493		Spacer-timer Shaft				$ 14.36
27	131197000		Clip-control Panel				$ 13.62
29	131794000		Harness-washer Wiring		Appelez-nous	-
31	5303291351		End Cap, White, Rh		Appelez-nous	-
39	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46
