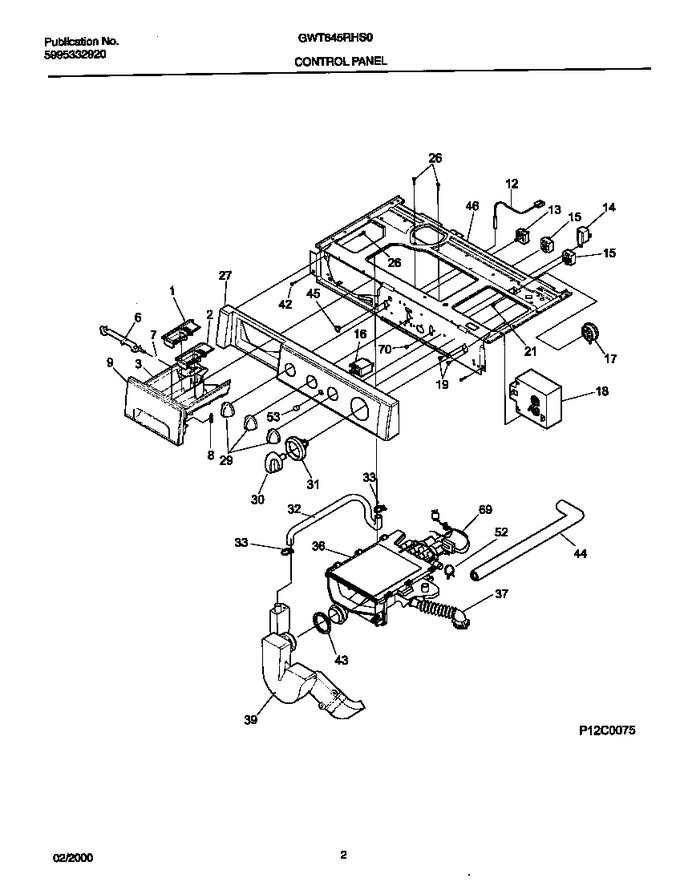

02 - P12c0075 Control Panel


03 - P12v0024 Wshr Cab,door


04 - Tub & Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131272100		Cover-bleach				$ 42.50
2	131272000		Cover-softener				$ 71.66
3	131444826		Asmy-dispenser Drawer/handle		Appelez-nous	-
6	131374500		Latch-handle				$ 44.45
7	131427500		Spring				$ 14.07
8	131373800		Magnet				$ 48.62
9	131691225		Asmy-disp Drwr Handle/trim		Appelez-nous	-
12	131505900		Switch-reed		Appelez-nous	-
13	131729000		Switch-water Temp		Appelez-nous	-
14	131724500		Buzzer				$ 72.82
15	131243200		Switch-extra Rinse/speed		Appelez-nous	-
16	131724700		Light-pilot				$ 59.59
17	131273700		Switch-pressure		Appelez-nous	-
18	137394200		Timer-washer Mallory Fhp   (Replaces: 131802100)				$ 435.20
19	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46
21	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
26	131823400		Scr 8-18x2.000				$ 1.42
27	131887250		Asmy-cons Frame/trim Gbh0jren		Appelez-nous	-
29	131761704		Knob-rotary				$ 43.38
30	134191800		Knob-timer   (Replaces: 131853500)			Immediately	$ 112.91
31	131853900		Pointer-timer Wht/drk Gray Ind			Immediately	$ 121.07
32	131786100		Hose-dispenser				$ 66.62
33	131306215		Clamp				$ 13.47
36	131803700		Asmy-detergent Dispenser		Appelez-nous	-
37	131271600		Hose-tub				$ 90.01
39	131272300		Duct-fill		Appelez-nous	-
42	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
43	131749200		Gasket-seal				$ 20.33
44	131786000		Hose-dispenser				$ 114.98
45	5303321107		Bushing				$ 4.52
46	131810010		Panel-cont Mtg-wing Bend		Appelez-nous	-
52	131306242		Clamp				$ 4.94
53	131724800		Lens-pilot Light				$ 12.06
69	131907500		Harness-dispenser				$ 72.71
70	5303015671		Screw,8-18 X .375		Appelez-nous	-
*45760	131899200		Harness-sole/mallory		Appelez-nous	-
*45761	131307900		Clamp				$ 11.34
