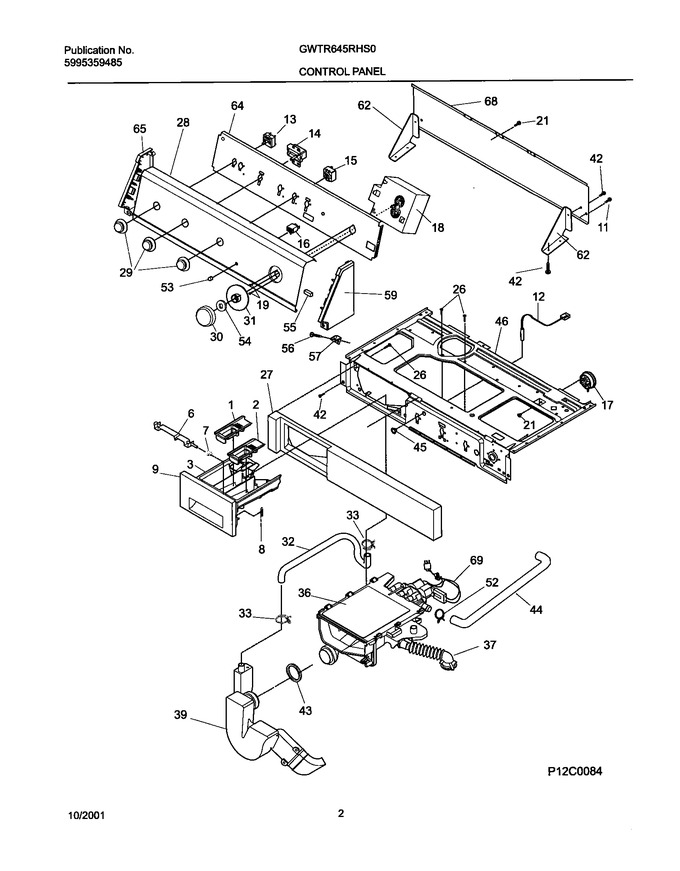

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131272100		Cover-bleach				$ 42.50
2	131272000		Cover-softener				$ 71.66
3	131444814		Assy-dispenser Drawer/handle		Appelez-nous	-
6	131714900		Latch Handle				$ 44.94
7	131427500		Spring				$ 14.07
8	131373800		Magnet				$ 48.62
9	131729500		Handle-dispenser				$ 150.03
11	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
13	131729000		Switch-water Temp		Appelez-nous	-
14	131169500		Buzzer				$ 44.20
15	131243200		Switch-extra Rinse/speed		Appelez-nous	-
16	131724700		Light-pilot				$ 59.59
18	137394200		Timer-washer Mallory Fhp   (Replaces: 131802100)				$ 435.20
19	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Drive				$ 10.46
21	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
26	131823400		Scr 8-18x2.000				$ 1.42
27	131870600		Panel-dispenser Drawer				$ 204.49
28	131922000		Trimplate Gbh0jrew		Appelez-nous	-
29	131032501		Knob-rotary, White/gray		Appelez-nous	-
30	131030401		Knob-timer, White				$ 49.23
31	131030501		Dial, White/gray		Appelez-nous	-
32	131786100		Hose-dispenser				$ 66.62
33	131306215		Clamp				$ 13.47
36	131803700		Asmy-detergent Dispenser		Appelez-nous	-
37	131271600		Hose-tub				$ 90.01
39	131272300		Duct-fill		Appelez-nous	-
42	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
43	131749200		Gasket-seal				$ 20.33
44	131786000		Hose-dispenser				$ 114.98
45	5303321107		Bushing				$ 4.52
46	131810010		Panel-cont Mtg-wing Bend		Appelez-nous	-
52	131306242		Clamp				$ 4.94
53	131724800		Lens-pilot Light				$ 12.06
54	5308015493		Spacer-timer Shaft				$ 14.36
55	131507701		Spacer Pad		Appelez-nous	-
56	131266310		Screw-end Cap, Poh Ab Wht Hd, 8-18 X 1.250		Appelez-nous	-
57	131197000		Clip-control Panel				$ 13.62
59	5303291351		End Cap, White, Rh		Appelez-nous	-
62	131921700		Brkt-cons Support		Appelez-nous	-
64	131728900		Bracket-control		Appelez-nous	-
65	5303291343		End Cap, White, Lh		Appelez-nous	-
68	5304406230		Console-backsheet		Appelez-nous	-
69	131907500		Harness-dispenser				$ 72.71
F12	131505900		Switch-reed		Appelez-nous	-
F17	131273700		Switch-pressure		Appelez-nous	-
NI	131872200		Harness-lower		Appelez-nous	-
NI	131912600		Harness-console Na Buzzer		Appelez-nous	-
