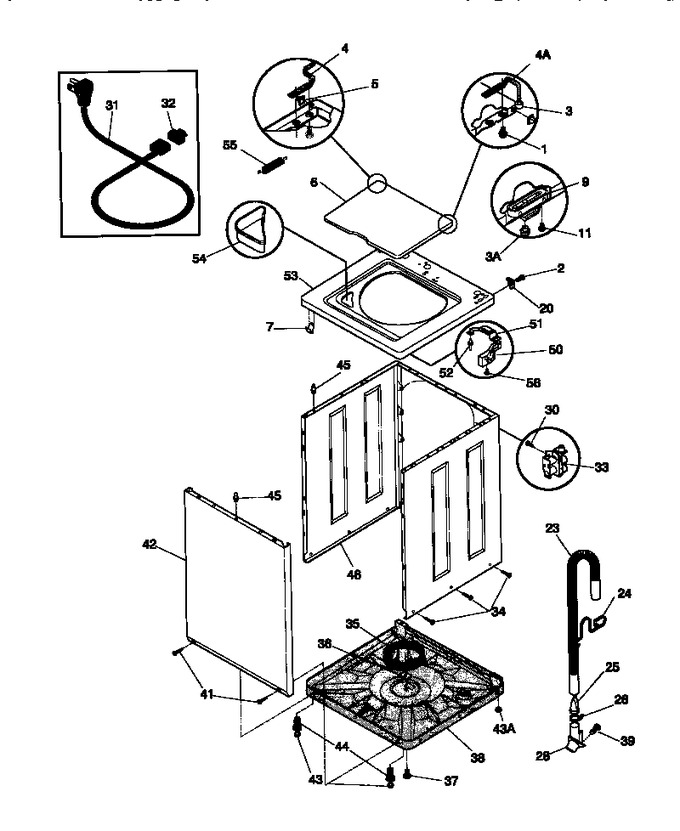

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303211089 | Screw-hinge/lid, Pph 45 Hdr Pt, 6-32 X .312 |
|
- | |||||
| 2 | 131168200 | Screw, Pph B St/z, 8-18 X .31 |
|
Immediately | $ 14.18 | ||||
| 3 | 131433300 | Bumper-hinge |
|
$ 13.18 | |||||
| 4 | 131385910 | Hinge-bar,lh |
|
$ 53.67 | |||||
| 5 | 5303208743 | Grommet-lid |
|
$ 5.63 | |||||
| 6 | 131374401 | Lid, White, W/o Inst. |
|
$ 112.37 | |||||
| 7 | 3205821 | Clip-top Panel, To Front Panel |
|
Immediately | $ 35.44 | ||||
| 9 | 131390000 | Strike-lid |
|
$ 55.19 | |||||
| 11 | 3204368 | Screw-strike, Pfh B, 6-20 X .375 |
|
$ 13.01 | |||||
| 20 | 5303208751 | Hinge-rear Cabinet |
|
$ 33.50 | |||||
| 23 | 131210200 | Hose-drain |
|
$ 59.21 | |||||
| 24 | 5303204987 | Retainer-drain Hose |
|
- | |||||
| 25 | 3204375 | Valve Check |
|
$ 48.06 | |||||
| 26 | 131127616 | Clamp-drain Hose |
|
- | |||||
| 28 | 131435000 | Connector-drn Hose |
|
$ 53.50 | |||||
| 30 | 131202300 | Screw-water Valve, Pph Ab, 10-16 X .625 |
|
Immediately | $ 13.46 | ||||
| 31 | 5304505407 | Cord-service (Replaces: 5303208765) |
|
$ 88.20 | |||||
| 32 | 5303209428 | Bushing-service Cord |
|
$ 17.01 | |||||
| 33 | 134190200 | Valve-water (Replaces: 131389300) |
|
Immediately | $ 153.09 | ||||
| 34 | 131205500 | Screw-body, 1/4-14 X .625 |
|
$ 13.46 | |||||
| 35 | 5308002385 | Ring-snubber |
|
$ 54.86 | |||||
| 36 | 3204380 | Block-shipping |
|
$ 12.29 | |||||
| 37 | 131102900 | Screw-shipping, Hh Ab Yel, 1/4-14 X .750 |
|
- | |||||
| 38 | 5303311213 | Base Assembly |
|
$ 374.69 | |||||
| 39 | 131205100 | Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 41 | 131302800 | Screw-front Pnl, Comb Th Ab, 10-16 X .50 (Replaces: 131258400) |
|
Immediately | $ 26.58 | ||||
| 42 | 131104303 | Panel - Front - White |
|
$ 309.70 | |||||
| 43 | 131422100 | Pad-leveling Leg |
|
$ 17.59 | |||||
| 44 | 134548800 | Leg-leveling, With Pad (Replaces: 5303309673) |
|
Immediately | $ 30.20 | ||||
| 45 | 131346400 | Pin, Locating |
|
$ 12.44 | |||||
| 46 | 131452800 | Body-white |
|
- | |||||
| 50 | 3205646 | Lock-lid |
|
- | |||||
| 51 | 5303306138 | Bracket-lid Lock |
|
- | |||||
| 52 | 08002420 | Rivet-lid Switch |
|
- | |||||
| 53 | 131452602 | Panel-top, White, W/o Bleach Disp |
|
- | |||||
| 55 | 134890500 | Spring-lid (Replaces: 5303212876) |
|
$ 19.85 | |||||
| 56 | 131243800 | Screw, Pan Hd Locking, 8-32ca X 0.375, Cr/sq Drive |
|
$ 10.46 | |||||
| *25120 | 5303309503 | Clip-backsheet |
|
$ 7.09 | |||||
| 3A | 134075500 | Bumper-lid (Replaces: 3204369) |
|
$ 17.35 | |||||
| 43A | 131422200 | Pad-level Leg |
|
Immediately | $ 56.70 | ||||
| 4A | 131374210 | Hinge Bar, Rh |
|
$ 56.02 |
