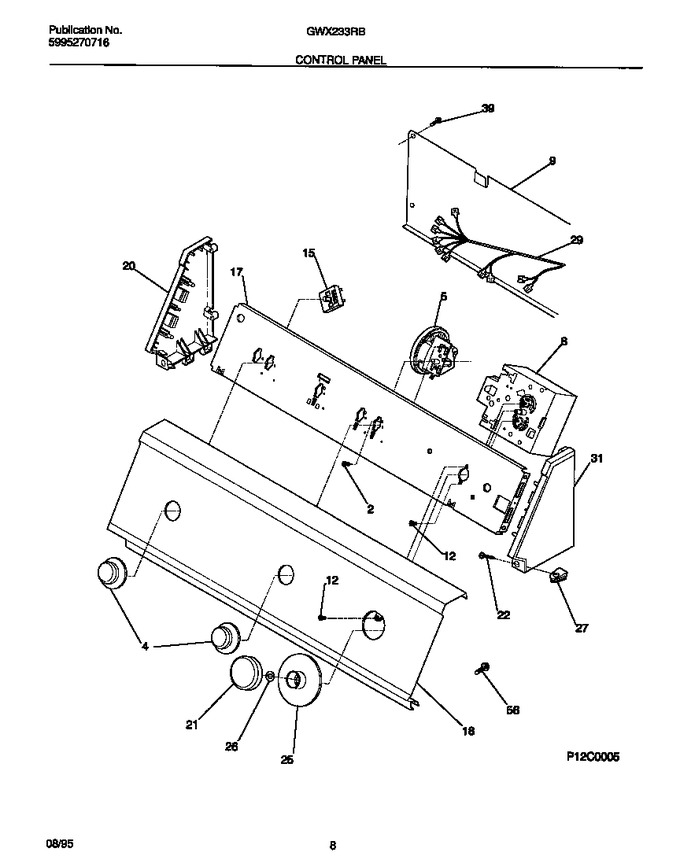

05 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pph B St/z, 8-18 X .31			Immediately	$ 14.18
4	131032501		Knob-rotary, White/gray		Appelez-nous	-
5	131047500		Switch-pressure				$ 186.53
8	131237800		Timer		Appelez-nous	-
9	5303205838		Backsheet-console		Appelez-nous	-
12	3161188		Screw-timer, Pth St, 8-32nc-2a X .25		Appelez-nous	-
15	131047000		Switch-temperature		Appelez-nous	-
17	131297306		Bracket-controls		Appelez-nous	-
18	131426100		Panel-control		Appelez-nous	-
20	5303291343		End Cap-lh, White		Appelez-nous	-
21	131030401		Knob-timer, White				$ 49.23
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131030501		Dial, White/gray		Appelez-nous	-
26	5308015493		Spacer-timer Shaft				$ 14.36
27	131197000		Clip-control Panel				$ 13.62
29	131165600		Harness		Appelez-nous	-
31	5303291351		End Cap-rh, White		Appelez-nous	-
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw, Pan Hd Locking, 8-32ca X 0.375, Cr/sq Drive				$ 10.46
