SELECT A DIAGRAM

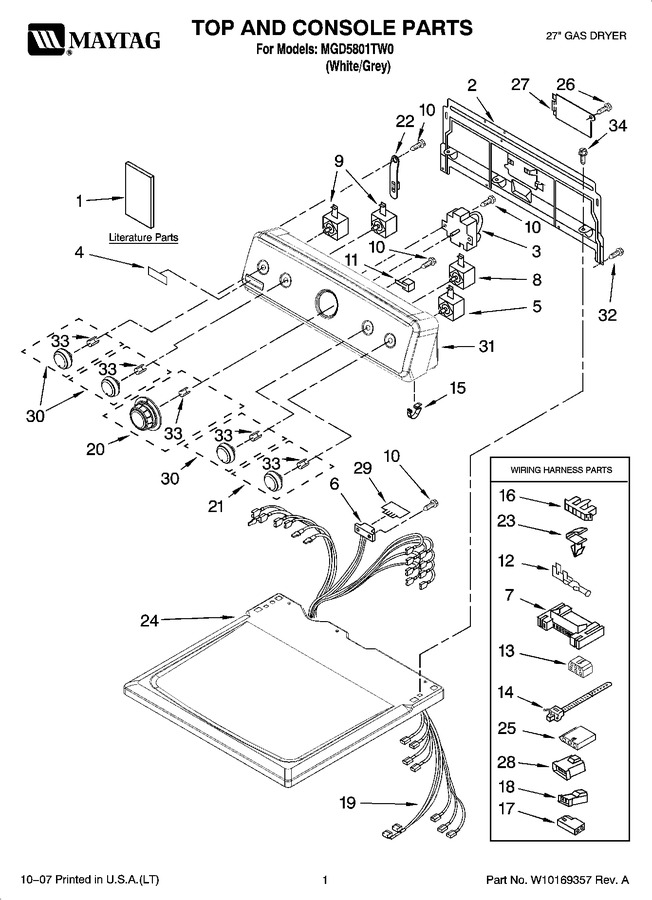

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8576353 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10155111 | Guide, Use & Care |
|
- | |||||
| 1 | W10155113 | Dryer Cycle Sheet |
|
- | |||||
| 1 | W10151000 | Wiring Diagram |
|
- | |||||
| 2 | 285909 | Panel, Rear Console (Replaces: 8317305) |
|
$ 235.28 | |||||
| 3 | WP8566184 | Timer, 60 Hz. (Replaces: 8566184) |
|
Immediately | $ 276.24 | ||||
| 4 | W10203949 | Badge (Replaces: W10112569) |
|
$ 64.84 | |||||
| 5 | WP3398094 | Switch, Push-to-start (Replaces: 3398094) |
|
Immediately | $ 116.45 | ||||
| 6 | 3391885 | Connector, Edge |
|
$ 81.65 | |||||
| 7 | 3395683 | Connector, Motor |
|
Immediately | $ 49.01 | ||||
| 8 | 8530169 | Switch, Rotary Temperature |
|
$ 132.35 | |||||
| 9 | WP3405156 | Switch, Rotary (Replaces: 3405156) |
|
$ 137.51 | |||||
| 10 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 11 | WP694419 | Mini-buzzer (Replaces: 694419) |
|
$ 120.65 | |||||
| 12 | WP94614 | Terminal (Replaces: 94614) |
|
$ 7.25 | |||||
| 13 | 3347243 | Connector 6-circuit |
|
- | |||||
| 14 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 30.09 | |||||
| 15 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 15.66 | ||||
| 16 | 3397269 | Connector-timer |
|
$ 25.55 | |||||
| 17 | 717252 | Receptacle, 2-way |
|
- | |||||
| 18 | WP3403499 | Connector (2) Position Gas Valve (Replaces: 3403499) |
|
$ 5.42 | |||||
| 19 | W10150998 | Harness, Wiring |
|
- | |||||
| 20 | WPW10110036 | Knob, Timer Assembly (Replaces: W10110036) |
|
$ 58.91 | |||||
| 21 | W10110037 | Knob Assembly Push-to-start |
|
$ 35.27 | |||||
| 22 | WP8568314 | Strap, Console (Replaces: 8568314) |
|
$ 7.35 | |||||
| 23 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 7.36 | |||||
| 24 | 8274462 | Top |
|
- | |||||
| 25 | 3936144 | Connector |
|
$ 19.10 | |||||
| 26 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 7.43 | ||||
| 27 | W10819767 | Cover, Terminal Block (Replaces: 8317340) |
|
- | |||||
| 28 | WP3403498 | Connector, 3 Position (gas Valve) (Replaces: 3403498) |
|
$ 6.57 | |||||
| 29 | WPW10476828 | Control, Electronic (Replaces: 8558178) |
|
Immediately | $ 296.94 | ||||
| 30 | WPW10110035 | Knob, Control Assembly (3) (Replaces: W10110035) |
|
$ 54.88 | |||||
| 31 | W10112601 | Console & Control Panel Assembly (includes Items. 4 & 15) |
|
- | |||||
| 32 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 33 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 34 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.45 |
