View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Washer Cabinet, Top
03 - Washer Motor, Hose
04 - Transmission

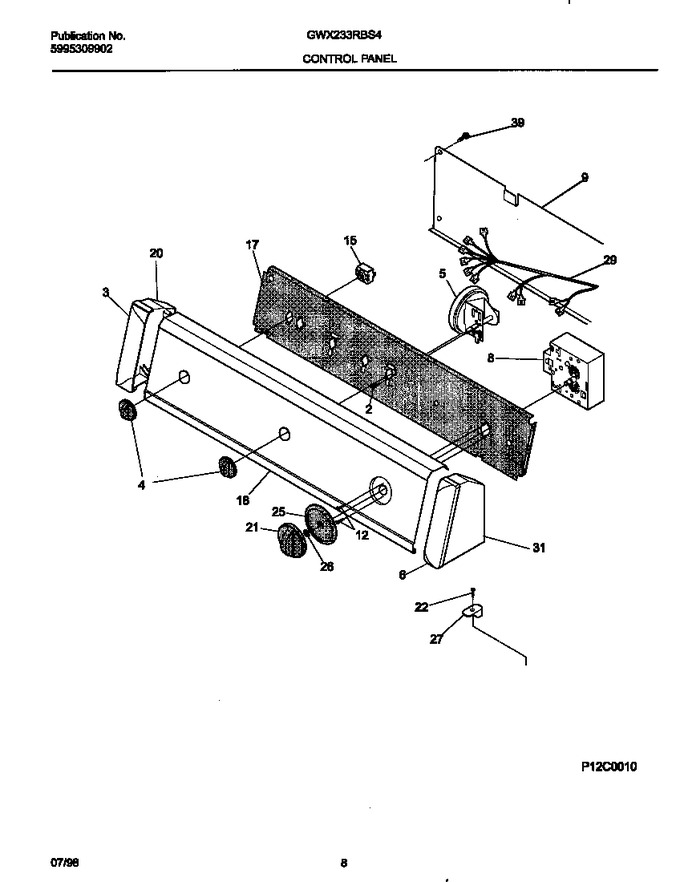

05 - Control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 131168200 | Screw, 8-18 X 0.31 |
|
Immediately | $ 14.18 | ||||
| 4 | 131032501 | Knob-rotary, White/gray |
|
- | |||||
| 5 | 131047500 | Switch-pressure |
|
$ 186.53 | |||||
| 8 | 131496900 | Timer-washer |
|
$ 72.93 | |||||
| 9 | 5304406230 | Console-backsheet |
|
- | |||||
| 12 | 3161188 | Screw-timer, Pth St, 8-32nc-2a X .25 |
|
- | |||||
| 15 | 131047000 | Switch-temperature |
|
- | |||||
| 17 | 131728900 | Bracket-controls |
|
- | |||||
| 18 | 131426100 | Panel-control, White |
|
- | |||||
| 20 | 5303291343 | End Cap, White, Lh |
|
- | |||||
| 21 | 131030401 | Knob-timer, White |
|
$ 49.23 | |||||
| 22 | 131266310 | Screw-end Cap, Poh Ab Wht Hd, 8-18 X 1.250 |
|
- | |||||
| 25 | 131030501 | Dial, White/gray |
|
- | |||||
| 26 | 5308015493 | Spacer-timer Shaft |
|
$ 14.36 | |||||
| 27 | 131197000 | Clip-control Panel |
|
$ 13.62 | |||||
| 29 | 131644900 | Harness-washer Wiring |
|
- | |||||
| 31 | 5303291351 | End Cap, White, Rh |
|
- | |||||
| 39 | 131205100 | Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 56 | 131243800 | Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv |
|
$ 10.46 |
