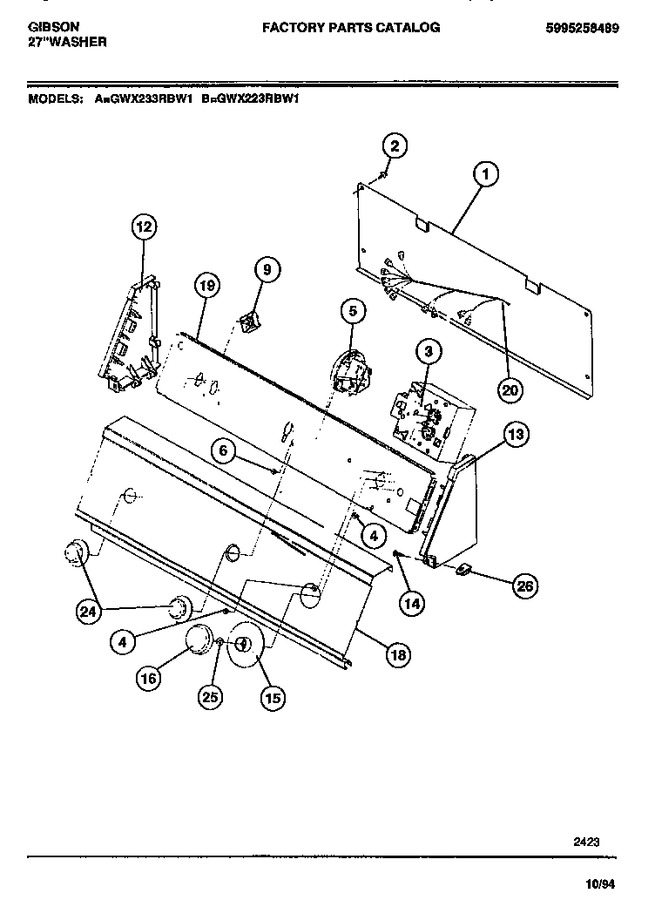

02 - Cabinet, Top Panel, Base
03 - Tubs, Hoses, Motor
04 - Transmission
05 - Console & Controls
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205898 | Backsheet |
|
- | |||||
| 2 | 131205100 | Screw |
|
Immediately | $ 14.18 | ||||
| 3 | 131237800 | Timer |
|
- | |||||
| 4 | 3161188 | Screw |
|
- | |||||
| 5 | 131047500 | Switch-pressure |
|
$ 186.53 | |||||
| 6 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 9 | 131047000 | Switch-temperature |
|
- | |||||
| 12 | 5303291344 | End Cap-lh |
|
$ 59.59 | |||||
| 13 | 5303291352 | End Cap-rh |
|
$ 56.49 | |||||
| 14 | 5303289526 | Screw |
|
- | |||||
| 15 | 131030500 | Dial |
|
- | |||||
| 16 | 131030400 | Knob-timer |
|
- | |||||
| 18 | 131265800 | Panel, Control |
|
- | |||||
| 19 | 131297306 | Bracket-control |
|
- | |||||
| 20 | 131165600 | Harness |
|
- | |||||
| 24 | 131032500 | Knob, Rotary |
|
$ 64.10 | |||||
| 25 | 5308015493 | Spacer-timer Shaft |
|
$ 14.36 | |||||
| 26 | 131197000 | Clip |
|
$ 13.62 | |||||
| *97681 | 131243800 | Screw, Ground Top Panel |
|
$ 10.46 | |||||
| *97682 | 131168200 | Screw, Ground Body |
|
Immediately | $ 14.18 | ||||
| *97683 | 5308950058 | Bearing, Housing Transm |
|
- |
