01 - Cover


02 - P12v0019 Wshr Cab,top


03 - P12t0052 Wshr Mtr,hose


04 - P12m0009 Transmission

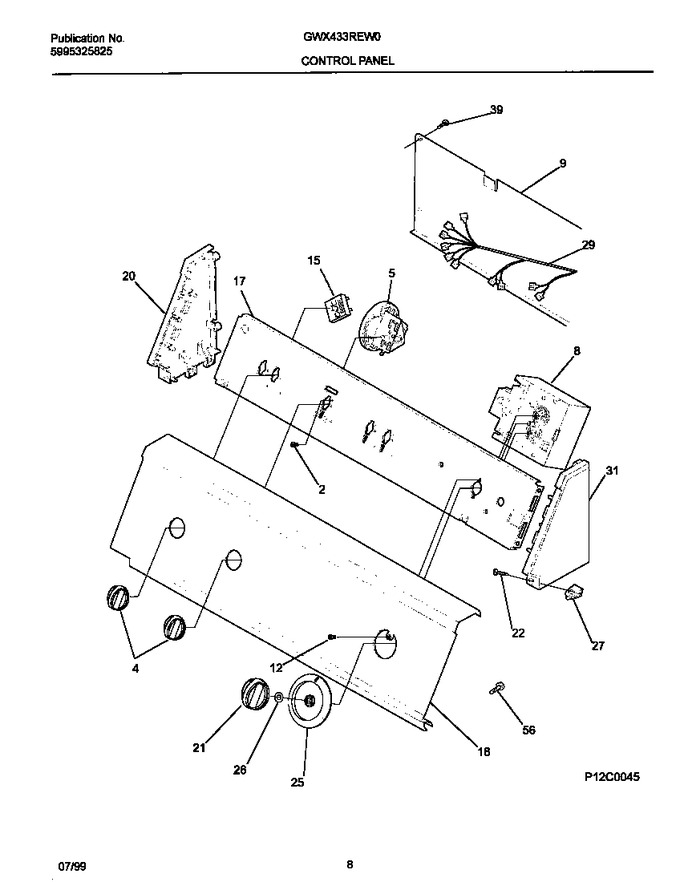

05 - P12c0045 Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
4	131118602		Knob-rotary, Black/gray, (2)		Appelez-nous	-
5	131047500		Switch-pressure				$ 186.53
8	131436800		Timer-washer				$ 302.09
9	5303205838		Backsheet-console		Appelez-nous	-
12	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
15	131047000		Switch-temperature		Appelez-nous	-
17	131728900		Bracket-control		Appelez-nous	-
18	131508200		Panel-control, White		Appelez-nous	-
20	5303291344		End Cap, Black, Lh				$ 59.59
21	131118400		Knob-timer, Black				$ 54.07
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	131118502		Dial-timer, Black/gray				$ 43.14
26	5308015493		Spacer-timer Shaft				$ 14.36
27	131197000		Clip-control Panel				$ 13.62
29	131793900		Harness-washer Wiring		Appelez-nous	-
31	5303291352		End Cap, Black, Rh				$ 56.49
39	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243800		Screw-brkt Top,pan Hd Locking ,8-32ca X 0.375,cr/sq Driv				$ 10.46
*32565	131827600		Bezel-gibson-blk/wht Print		Appelez-nous	-
