Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3205898 Backsheet Appelez-nous -
2 5308006553 Screw Appelez-nous -
3 131238200 Timer Appelez-nous -
4 3161188 Screw Appelez-nous -
5 131047700 Switch-pressure Appelez-nous -
6 131168200 Screw In-Stock Immediately $ 14.18

7 131120400 Switch - Speed Appelez-nous -
9 131081200 Switch-temperature Appelez-nous -
12 5303291343 End Cap-l.h. Appelez-nous -
13 5303291351 End Cap-r.h. Appelez-nous -
14 5303297854 Screw Appelez-nous -
15 131030501 Dial Appelez-nous -
16 131030401 Knob - Timer Special Order $ 49.23

18 131338800 Panel - Control Appelez-nous -
19 131297306 Bracket-controls Appelez-nous -
20 131166200 Harness Appelez-nous -
24 131032501 Knob-rotary Appelez-nous -
25 5308015493 Spacer-timer Shaft Special Order $ 14.36

26 131197000 Clip Special Order $ 13.62

*76024 131243800 Screw, Ground Top Panel Special Order $ 10.46

*76024 131168200 Screw, Ground Body In-Stock Immediately $ 14.18


    View Diagram in Separate Window     Print Icon   Print Part List

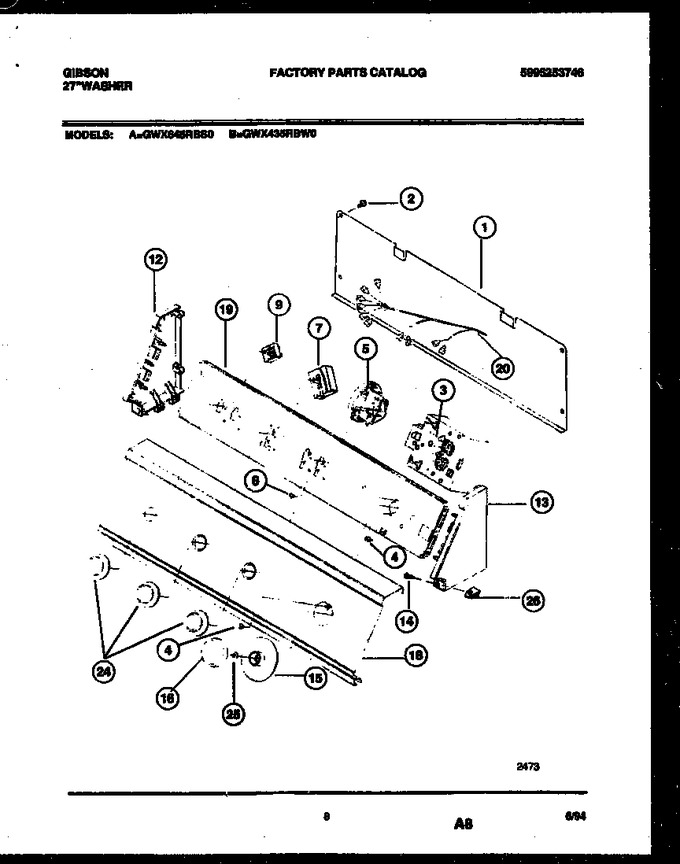

Diagram for GWX645RBS0
