SELECT A DIAGRAM

01 - Cover


03 - Wrapper


05 - Control Parts


07 - Air Handling Parts


10 - Compressor


13 - Window Mounting Parts

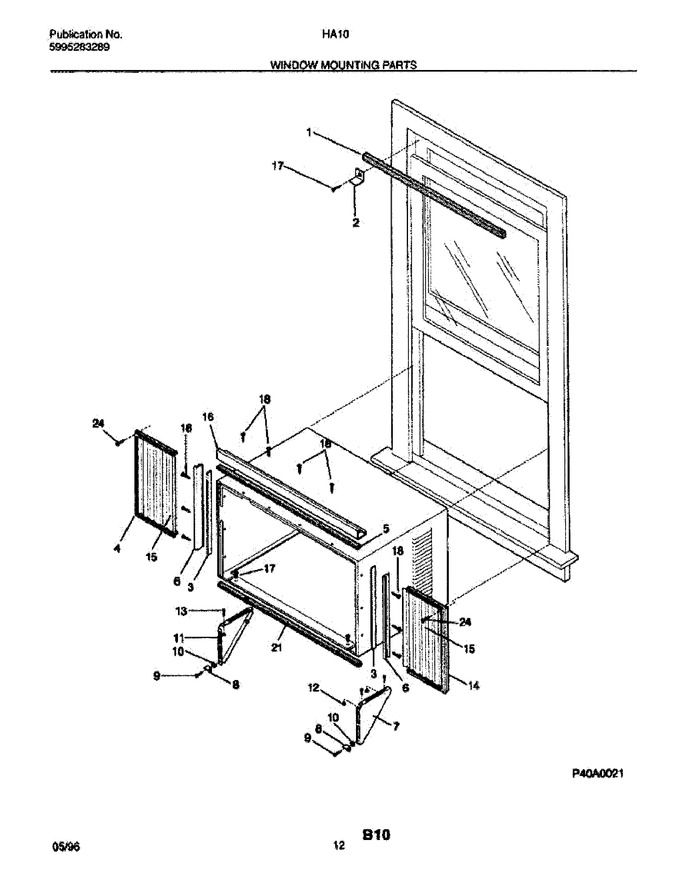

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3002603		Seal, Frame, Top		Appelez-nous	-
2	5303211056		Bracket Window		Appelez-nous	-
3	5303276728		Seal,retainer		Appelez-nous	-
4	5303301245		Frame, Lh		Appelez-nous	-
5	5303207200		Seal-top Rail		Appelez-nous	-
6	5303301250		Retainer-accordian		Appelez-nous	-
7	5303301254		Support, Rh		Appelez-nous	-
8	3001815		Bracket - Support		Appelez-nous	-
9	3007756		Screw - Sill Supt		Appelez-nous	-
10	3007759		Nut - Bracket		Appelez-nous	-
11	5303301255		Support, Lh		Appelez-nous	-
12	3017023		Nut, Hex		Appelez-nous	-
13	5303281649		Screw - Support, 4		Appelez-nous	-
14	5303301246		Frame, Rh		Appelez-nous	-
15	5303301247		Accordian		Appelez-nous	-
16	5303301251		Rail,top		Appelez-nous	-
17	3002803		Screw-wood		Appelez-nous	-
18	3015312		Screw		Appelez-nous	-
21	5314949603		Seal, Bottom		Appelez-nous	-
24	3002801		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
