SELECT A DIAGRAM

01 - Cover

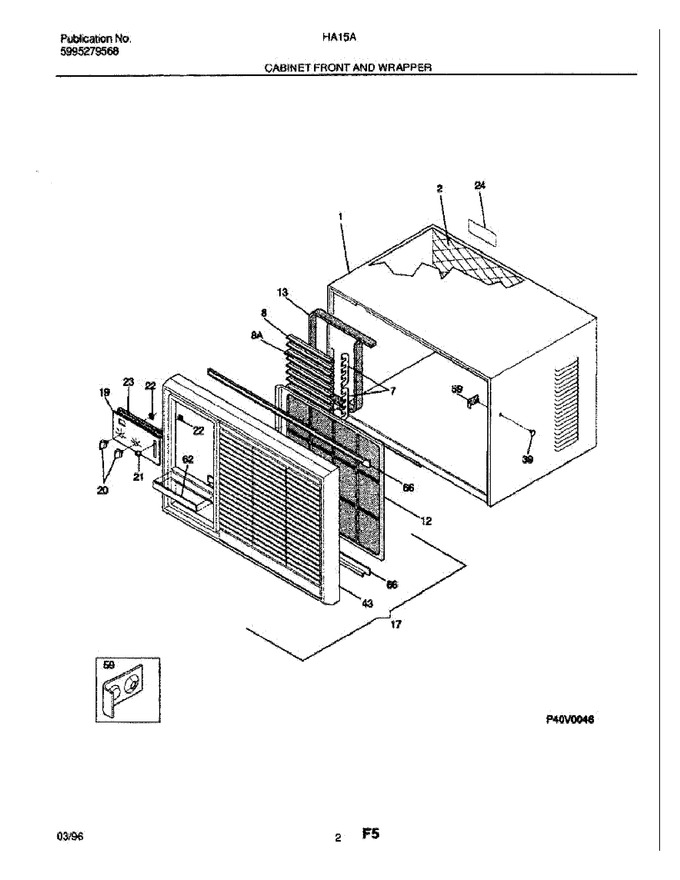

03 - Cabinet Front And Wrapper


05 - Control Parts


07 - Air Handling Parts


09 - Compressor


11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303303545		Wrapper		Appelez-nous	-
2	5303210207		Panel - Rear		Appelez-nous	-
7	5303202811		Link-louver		Appelez-nous	-
8	5303307462		Louver,(8)		Appelez-nous	-
12	5303307477		Filter		Appelez-nous	-
13	5303201854		Seal-front		Appelez-nous	-
17	5303318557		Front Complete		Appelez-nous	-
19	5303318563		Dial Plate		Appelez-nous	-
20	5303208288		Knob-control		Appelez-nous	-
21	5303271565		Knob-slide		Appelez-nous	-
22	5303001775		Spacer, Plate		Appelez-nous	-
23	3201953		Seal-dial Plate		Appelez-nous	-
39	134178901		Screw,truss Head ,8-18 X 0.625 ,front ,(2),square Drive   (Replaces: 5303293767)				$ 14.89
43	5303318555		Frame-front		Appelez-nous	-
59	08010928		Nut - Front Lock		Appelez-nous	-
62	5303318556		Insert-front		Appelez-nous	-
66	5303272800		Rail, Filter		Appelez-nous	-
	5303212504		Seal - Chassis, Bottom		Appelez-nous	-
8A	5303307463		Louver W/handle,(2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
