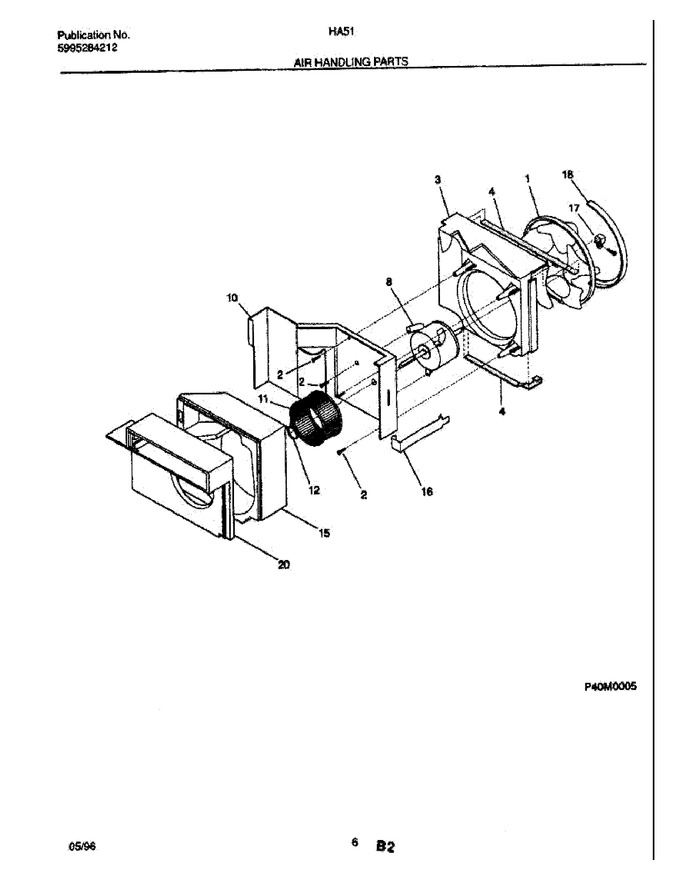

07 - Air Handling Parts
09 - Compressor
11 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303270893 | Fan Blade, With Clamp |
|
$ 132.46 | |||||
| 2 | 3202975 | Screw |
|
- | |||||
| 3 | 5303270041 | Housing-fan |
|
- | |||||
| 4 | 5303270043 | Seal, Condenser |
|
- | |||||
| 8 | 309615701 | Motor-fan |
|
- | |||||
| 10 | 309602401 | Bulkhead |
|
- | |||||
| 11 | 309603301 | Blower Wheel |
|
$ 57.65 | |||||
| 12 | 5303012110 | Clamp-blower |
|
$ 8.14 | |||||
| 15 | 5303302851 | Housing-blower |
|
- | |||||
| 16 | 309100201 | Clip |
|
- | |||||
| 17 | 5308011040 | Clamp - Fan Blade |
|
- | |||||
| 18 | 5303270042 | Deflector-water |
|
- | |||||
| 20 | 5303303573 | Plate-blower Housing |
|
- |
