View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover

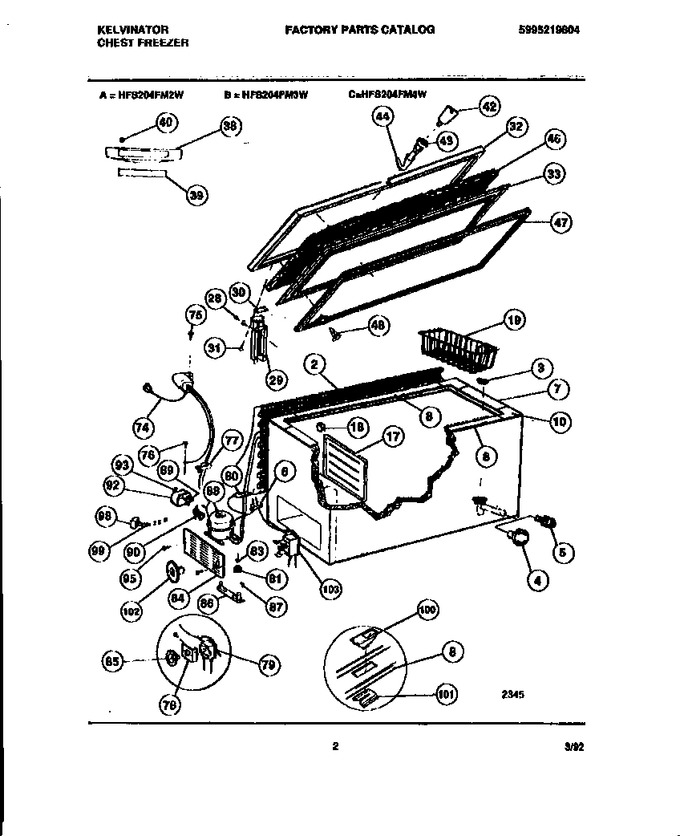

02 - Chest Freezer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5300114029 | External Condenser (service Replacement Only) |
|
- | |||||
| 3 | 5306593887 | Plug, Drain, Liner |
|
- | |||||
| 4 | 5300128045 | Plug-drain Shell |
|
- | |||||
| 5 | 06594053 | Adapter, Hose |
|
- | |||||
| 6 | 08016808 | Grommet-control Tube |
|
- | |||||
| 7 | 5303211221 | Breaker Ends, Brown |
|
- | |||||
| 8 | 5303925050 | Breaker, Front And Rear |
|
- | |||||
| 10 | 5303211222 | Breaker Corners |
|
- | |||||
| 17 | 5308016784 | Divider-drain Pan |
|
- | |||||
| 18 | 5306594584 | Supports Divider |
|
$ 19.80 | |||||
| 19 | 5303204811 | Basket |
|
- | |||||
| 28 | 5303091426 | Screw Hinge Base |
|
- | |||||
| 29 | 297321900 | Hinge (Replaces: 5303925006) |
|
$ 90.01 | |||||
| 30 | 08037853 | Spacer-hinge Wing |
|
- | |||||
| 31 | 5309950602 | Screw-hinge Wing |
|
$ 5.30 | |||||
| 32 | 5312901264 | Lid Exterior-white |
|
- | |||||
| 33 | 5303283642 | Panel, Inner Lid, White |
|
- | |||||
| 38 | 5300121006 | Handle |
|
- | |||||
| 39 | 5300128894 | Insert Handle |
|
- | |||||
| 40 | 5309948647 | Fastener, Handle |
|
- | |||||
| 42 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 43 | 5303925107 | Lock-complete |
|
- | |||||
| 44 | 5300300791 | Lock Hook |
|
- | |||||
| 46 | 5300128901 | Insulation Lid |
|
- | |||||
| 47 | 5308016765 | Gasket Lid Brown |
|
- | |||||
| 48 | 5303212828 | Clip-panel (46) |
|
$ 16.63 | |||||
| 74 | 5303212629 | Wiring Harness |
|
- | |||||
| 75 | 08009412 | Screw |
|
- | |||||
| 76 | 08009412 | Screw |
|
- | |||||
| 77 | 08016762 | Clip Wires |
|
- | |||||
| 80 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 81 | 5308008778 | Grommet Compressor |
|
- | |||||
| 83 | 5309950343 | Clip Compressor |
|
- | |||||
| 84 | 5303212647 | Access Panel |
|
- | |||||
| 86 | 08016764 | Support Compressor |
|
- | |||||
| 87 | 08016776 | Screw-support |
|
- | |||||
| 88 | 5303916411 | Compressor With Electricals |
|
- | |||||
| 89 | 5303017753 | Relay |
|
- | |||||
| 90 | 5303206836 | Overload |
|
- | |||||
| 92 | 5303006411 | Cover, Terminal |
|
- | |||||
| 93 | 5303006412 | Clamp Cover |
|
- | |||||
| 95 | 216858001 | Screw-access Panel (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 98 | 5303916391 | Run Capacitor |
|
- | |||||
| 99 | 5303091425 | Harness Capacitor |
|
- | |||||
| 100 | 5303211223 | Latch Catch |
|
- | |||||
| 101 | 5303208481 | Support-latch Catch |
|
- | |||||
| 102 | 5303270910 | Knob Control |
|
- | |||||
| 103 | 5304496560 | Control Temperature (Replaces: 5303212610) |
|
$ 49.62 | |||||
| *34800 | 5303280303 | Knob, Control |
|
- | |||||
| 95A | 08016777 | Power Cord Retainer (non-illustrated) |
|
- |
