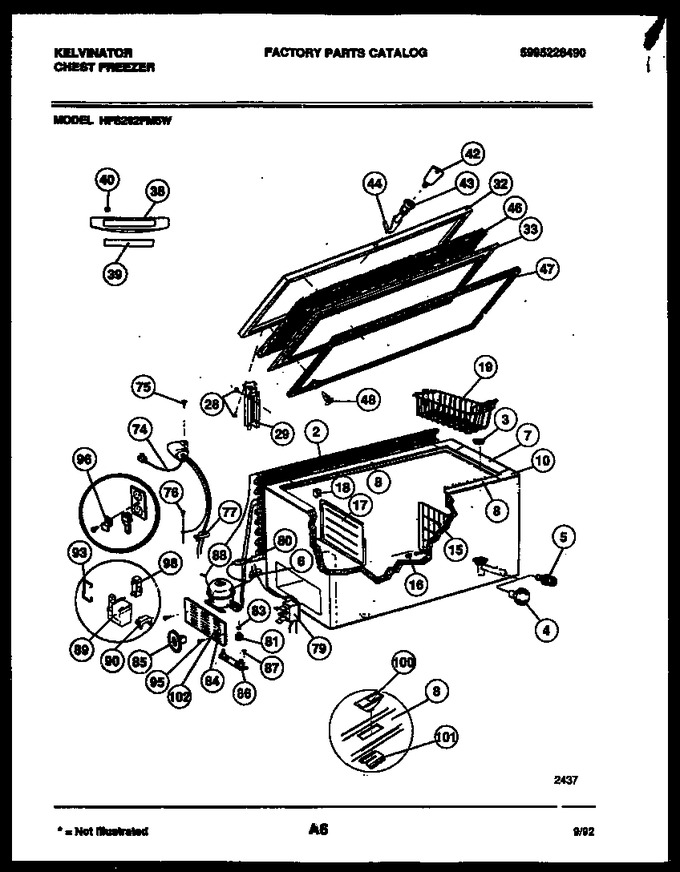

02 - Chest Freezer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5300300173 | External Condenser (not Original Equipment-service Repla |
|
- | |||||
| 3 | 5306593887 | Plug, Drain, Liner |
|
- | |||||
| 4 | 5300128045 | Plug-drain Shell |
|
- | |||||
| 5 | 08016777 | Hose Adapter (not Original Equipment-customer Purchase O |
|
- | |||||
| 6 | 08016808 | Grommet-control Tube |
|
- | |||||
| 7 | 5303211221 | Breaker Ends |
|
- | |||||
| 8 | 5303925084 | Breaker Front & Rear |
|
- | |||||
| 10 | 5303211222 | Breaker Corners |
|
- | |||||
| 15 | 3017750 | Divider Footed Assy |
|
- | |||||
| 16 | 06599916 | Tips Divider |
|
- | |||||
| 17 | 216034600 | Divider-drain Pan |
|
- | |||||
| 18 | 5306594584 | Supports Divider |
|
$ 19.80 | |||||
| 19 | 5303204811 | Basket |
|
- | |||||
| 28 | 5309950602 | Screw Hinge |
|
$ 5.30 | |||||
| 29 | 297321900 | Hinge (Replaces: 5303925006) |
|
$ 90.01 | |||||
| 32 | 216032402 | Lid Exterior |
|
- | |||||
| 33 | 3017741 | Panel Inner Lid |
|
- | |||||
| 38 | 5300121006 | Handle |
|
- | |||||
| 39 | 5300128894 | Insert Handle |
|
- | |||||
| 40 | 5309948647 | Fastener, Handle |
|
- | |||||
| 42 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 43 | 5303925107 | Lock-complete |
|
- | |||||
| 44 | 5300300791 | Lock Hook |
|
- | |||||
| 46 | 5300128901 | Insulation Lid |
|
- | |||||
| 47 | 5303200788 | Gasket Lid-brown |
|
- | |||||
| 48 | 5303212828 | Clip-panel (46) |
|
$ 16.63 | |||||
| 74 | 216089600 | Wiring Harness |
|
- | |||||
| 75 | 08009412 | Screw |
|
- | |||||
| 76 | 08009412 | Screw |
|
- | |||||
| 77 | 08016762 | Clip Wires |
|
- | |||||
| 79 | 5304496560 | Control Temp (Replaces: 5303212610) |
|
$ 49.62 | |||||
| 80 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 81 | 5308008778 | Grommet Compressor |
|
- | |||||
| 83 | 216056400 | Clip Compressor |
|
- | |||||
| 84 | 216022700 | Access Panel |
|
- | |||||
| 85 | 216034508 | Knob Control |
|
- | |||||
| 86 | 5303212615 | Support, Compressor |
|
- | |||||
| 87 | 08016776 | Screw-support |
|
- | |||||
| 88 | 5303925125 | Compressor |
|
- | |||||
| 89 | 216008900 | Relay |
|
- | |||||
| 90 | 5303206836 | Overload |
|
- | |||||
| 93 | 215012000 | Clamp, Cover |
|
$ 2.63 | |||||
| 95 | 216858001 | Screw-access Panel (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 96 | 08016777 | Power Cord Retainer (not Original Equipment-customer Pur |
|
- | |||||
| 98 | 5303916391 | Run Capacitor |
|
- | |||||
| 100 | 5303211223 | Latch Catch |
|
- | |||||
| 101 | 5303208481 | Support-latch Catch |
|
- | |||||
| 102 | 5303208663 | Plug Control |
|
- |
