01 - Cover

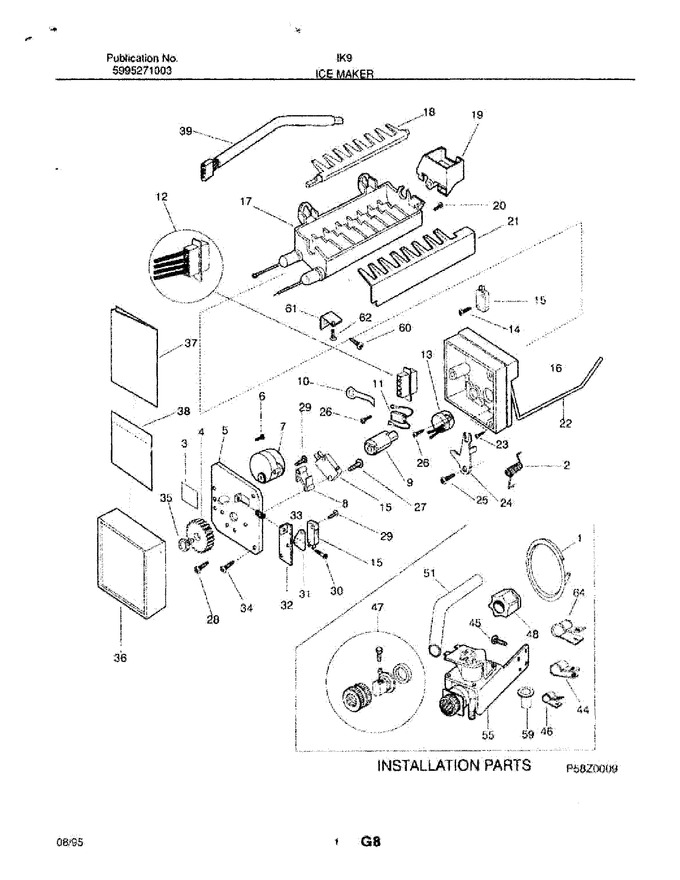

02 - Ice Maker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5314368805 | Tube - Valve To I/m |
|
- | |||||
| 2 | 3206348 | Spring, Shut-off Arm |
|
- | |||||
| 3 | 3206299 | I.d. Plate |
|
- | |||||
| 4 | 3206301 | Gear |
|
- | |||||
| 5 | 3206303 | Plate-mounting |
|
$ 47.41 | |||||
| 6 | 3206305 | Screw-grnd 8-32 X 1/4 |
|
- | |||||
| 8 | 3206312 | Spacer-holding Sw |
|
- | |||||
| 9 | 3206313 | Cam |
|
- | |||||
| 10 | 3206315 | Clamp |
|
$ 35.33 | |||||
| 14 | 3206323 | Screw - 4-24 X 3/4 Switch To Support |
|
- | |||||
| 16 | 3206326 | Support |
|
- | |||||
| 18 | 3206328 | Ejector |
|
- | |||||
| 19 | 3206330 | Bearing & Inlet |
|
- | |||||
| 20 | 3206331 | Screw, 8-18 X 3/8, (2) |
|
- | |||||
| 21 | 3206332 | Ice Strippler |
|
- | |||||
| 22 | 3206333 | Arm, Shut-off |
|
- | |||||
| 23 | 3206334 | Screw - Sup / Mold Body, 8-18 X 1, (4) |
|
- | |||||
| 24 | 5304456675 | Lever-arm (Replaces: 3206335) |
|
$ 66.63 | |||||
| 25 | 3206336 | Screw, Arm Lever/support, 8-18 X 9/16 |
|
- | |||||
| 26 | 3206337 | Screw-4-24 X 3/8 Thermo To Support (4) |
|
- | |||||
| 27 | 3206338 | Screw-4-40 X 1 Switch Spacer To Plate (2) |
|
- | |||||
| 28 | 3206339 | Screw-timing Stop, 4-40 X 3/8 |
|
- | |||||
| 29 | 3206340 | Screw-4-40 X 3/4 Motor Switch To Plate (4) |
|
- | |||||
| 30 | 3206341 | Screw - 8-32 X 1 Timing Screw |
|
- | |||||
| 31 | 3206342 | Insulator |
|
- | |||||
| 32 | 3206343 | Plate-valve Switch |
|
- | |||||
| 33 | 3206344 | Spring |
|
- | |||||
| 34 | 3206345 | Screw - 8 18 X 7/16 Mounting Plate To Support (3) |
|
- | |||||
| 35 | 3206346 | Screw - 6-20 X .437 Gear To Cam |
|
- | |||||
| 36 | 3206347 | Cover-complete |
|
$ 29.24 | |||||
| 37 | 5303207442 | Data Sheet |
|
- | |||||
| 38 | 5303207445 | Envelope-data Sheet |
|
- | |||||
| 44 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 46 | 5303001193 | Clamp-inlet Tube, Metal |
|
$ 16.30 | |||||
| 47 | 5308000205 | Adapter-water Sply |
|
$ 79.01 | |||||
| 48 | 5308000200 | Nut, 7/16 X 20, Nylon |
|
- | |||||
| 51 | 215811600 | Tube-fill |
|
- | |||||
| 59 | 5303001191 | Sleeve-tube Insert |
|
$ 6.72 | |||||
| 60 | 5304455852 | Screw, Hex Washer Head, 8-15(a) X 1 (Replaces: 5303207328) |
|
$ 12.76 | |||||
| 61 | 5303289066 | Bracket-im Mounting |
|
- | |||||
| 62 | 5303289067 | Screw-im Mtg Brkt |
|
- | |||||
| 64 | 5304455846 | Clamp-copper Tube, Steel (Replaces: 5303001549) |
|
$ 10.63 | |||||
| F11 | 3206319 | Thermal Cutoff Assy |
|
$ 48.72 | |||||
| F12 | 3206349 | Harness-wiring, Internal Im, W/plug |
|
$ 130.20 | |||||
| F13 | 3206322 | Thermostat Assembly, Ice Maker |
|
$ 130.41 | |||||
| F15 | 5304456667 | Switch,(3) (Replaces: 3206324) |
|
$ 92.53 | |||||
| F17 | 3206327 | Mold - Body Assy W/ Heater |
|
- | |||||
| F39 | 5303289065 | Harness-wiring,im To Refr |
|
- | |||||
| F55 | 5303289068 | Valve-water,115v |
|
- | |||||
| F7 | 5303918277 | Motor-ice Maker (Replaces: 3206306) |
|
Immediately | $ 96.11 | ||||
| NI | 5303015102 | Cap-water Valve |
|
- | |||||
| NI | 3206321 | Plug |
|
$ 29.82 |
