SELECT A DIAGRAM

02 - Control Panel

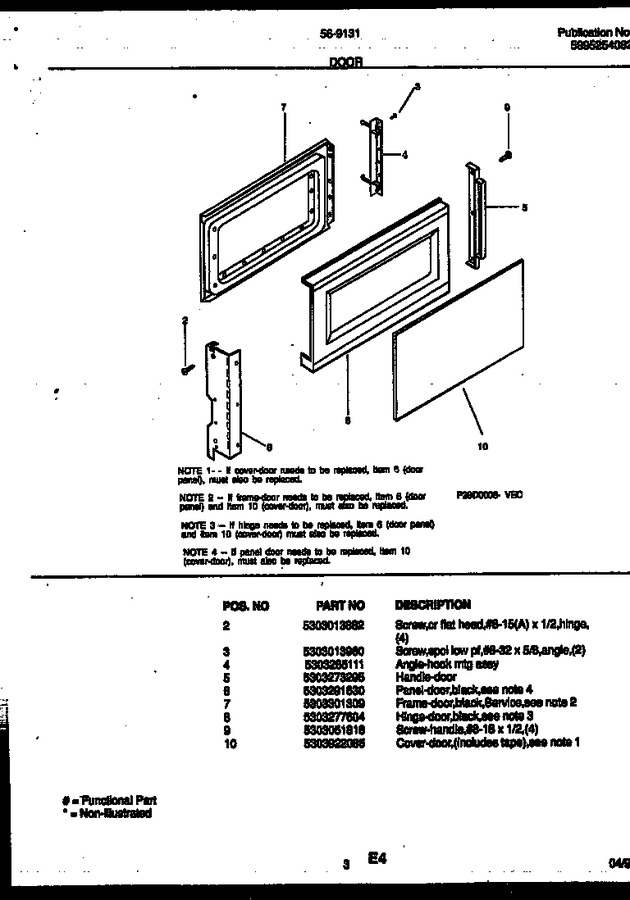

03 - Door Parts


04 - Functional Parts


05 - Wrapper And Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303013882		Screw, Cr Flat Head, 8-15(a) X 1/2, Hinge, (4)		Appelez-nous	-
3	5303013960		Screw, Spcl Low Pf, 8, 32 X 5/8, Angle, (2)		Appelez-nous	-
4	5303285111		Angle-hook Mtg Assy		Appelez-nous	-
5	5303273295		Handle-door		Appelez-nous	-
6	5303291630		Panel-door, Black (if Panel Door Needs To Be Replaced, I		Appelez-nous	-
7	5303301309		Frame-door, Black, Service (if Frame-door Needs To Be Re		Appelez-nous	-
8	5303277604		Hinge-door, Black (if Hinge Needs To Be Replaced, Item 6		Appelez-nous	-
9	5303051818		Screw-handle, 8-18 X 1/2, (4)		Appelez-nous	-
10	5303922085		Cover-door, (includes Tape) (if Cover-door Needs To Be R		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
