SELECT A DIAGRAM

01 - Cover

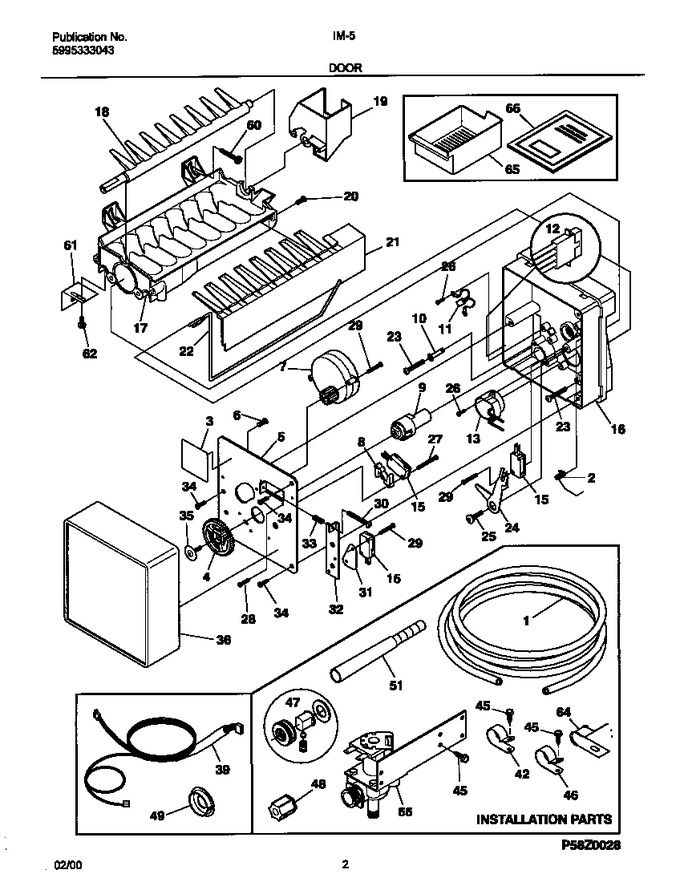

02 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308010366		Tube-water Inlet, 0.25 Od X 93``, Plastic				$ 17.44
2	3206348		Spring, Shut-off Arm		Appelez-nous	-
3	3206299		Label,id Plate		Appelez-nous	-
4	3206301		Gear		Appelez-nous	-
5	3206303		Plate-mounting				$ 47.41
6	3206305		Screw-ground Wire,8-32 X 0.250		Appelez-nous	-
7	5303918277		Motor-ice Maker   (Replaces: 3206306)			Immediately	$ 96.11
8	3206312		Spacer-hold Switch		Appelez-nous	-
9	3206313		Cam		Appelez-nous	-
10	3206315		Clamp				$ 35.33
11	3206319		Thermal Cutoff,ice Maker,comp				$ 48.72
12	3206349		Wiring Harness,ice Maker,inte				$ 130.20
13	3206322		Thermostat Assy,ice Maker				$ 130.41
15	5304456667		Switch,(3), Mid-south Ele   (Replaces: 3206324)				$ 92.53
16	3206326		Support,phenolic,16,mid-south		Appelez-nous	-
17	241798231		Mold-ice Maker,radius Cube,wi   (Replaces: 5303320545)			Immediately	$ 200.97
18	3206328		Ejector-ice,18,mid-south Elec		Appelez-nous	-
19	3206330		Bearing & Inlet,19,mid-south		Appelez-nous	-
20	5304408581		Screw,8-32 X 0.375,20,mid-sou +		Appelez-nous	-
21	3206332		Ice Stripper,21,mid-south Ele		Appelez-nous	-
22	3206333		Shut-off Arm,22,mid-south Ele		Appelez-nous	-
23	5304408582		Screw,8-32 X 0.875,mold-to-su		Appelez-nous	-
24	5304456675		Lever Arm,24,mid-south Elec   (Replaces: 3206335)				$ 66.63
25	3206336		Screw,8-18 X 0.562,lever Arm		Appelez-nous	-
26	3206337		Screw-thermo/sprt,4-24 X 0.37		Appelez-nous	-
27	3206338		Screw,4-40 X 1.000,hold Switc		Appelez-nous	-
28	3206339		Screw-timing Stop,4-40 X 0.37		Appelez-nous	-
29	3206323		Screw,4-24 X 0.750,(6),29,mid		Appelez-nous	-
30	3206341		Screw-timing Adj,8-32 X 1.000		Appelez-nous	-
31	3206342		Insulator,31,mid-south Elec		Appelez-nous	-
32	3206343		Plate-valve Switch,32,mid-sou		Appelez-nous	-
33	5304408583		Spring-timing Adj,33,mid-sout		Appelez-nous	-
34	5304408584		Screw,plascrew,6,(3),34,mid-		Appelez-nous	-
35	5304408585		Screw,35,mid-south Elec,75107		Appelez-nous	-
36	3206347		Cover-ice Maker,36,mid-south				$ 29.24
39	5303289065		Wiring Harness,ice Maker,exte		Appelez-nous	-
42	08000132		Clamp,.56 Id (small),nylon,(2		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5303001193		Clamp,.50 Id ,steel ,water Tube				$ 16.30
47	3206360		Adapter-water Sply				$ 94.66
48	5308000200		Nut,7/16-20 ,nylon		Appelez-nous	-
49	5303001147		Plug-harness Hole,12   (Replaces: 215230400)				$ 22.30
51	215811600		Tube-water,ice Mold Fill,exte		Appelez-nous	-
55	242252603		Valve-water,single Solenoid,5   (Replaces: 218720400)			Immediately	$ 73.14
60	5304455852		Screw,hex Washer Head,8-15a X   (Replaces: 5303207328)				$ 12.76
61	218721500		Bracket-leveling, Ice Maker				$ 73.00
62	240555002		Screw,hex Washer Head,8-32t X   (Replaces: 5304404362)			Immediately	$ 13.46
64	5304455846		Clamp,0.31 Id,steel,copper Wt +   (Replaces: 5303001549)				$ 10.63
65	5303212918		Container-ice,34,for 178675-0				$ 104.66
66	218736100		Instructions,installation,im-		Appelez-nous	-
*80960	3206321		Connector Plug,wiring Harne				$ 29.82
*80961	215454600		Tube-water,ice Mold Fill,elbo				$ 81.11
*80962	5303918277		Ice Maker,radius Cube,115 V,n   (Replaces: 218699501)			Immediately	$ 96.11

    View Diagram in Separate Window       Print Part List
