02 - Cabinet And Installation Parts
03 - Electrical And Air Handling Parts
04 - System Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

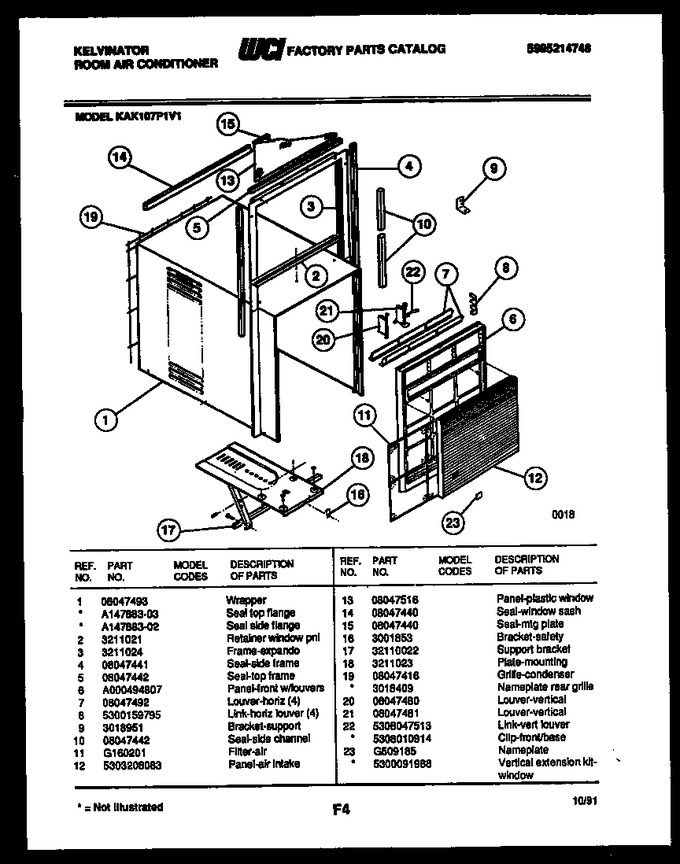

| 1 | 08047493 | Wrapper |
|
- | |||||
| 2 | 3211021 | Retainer-window Pnl |
|
- | |||||
| 3 | 3211024 | Frame - Expando |
|
- | |||||
| 4 | 08047441 | Seal-side Frame |
|
- | |||||
| 5 | 08047442 | Seal-top Frame |
|
- | |||||
| 6 | A000494807 | Panel-front W/louvers |
|
- | |||||
| 7 | 08047492 | Louver-horiz (4) |
|
- | |||||
| 8 | 5300159795 | Link-horiz Louver (4) |
|
- | |||||
| 9 | 3018951 | Bracket-support |
|
- | |||||
| 10 | 08047442 | Seal-side Channel |
|
- | |||||
| 11 | G160201 | Filter, Air |
|
- | |||||
| 12 | 5303208083 | Panel-air Intake |
|
- | |||||
| 13 | 08047516 | Panel-plastic Window |
|
- | |||||
| 14 | 08047440 | Seal-window Sash |
|
- | |||||
| 15 | 08047440 | Seal-mtg Plate |
|
- | |||||
| 16 | 3001853 | Bracket - Safety |
|
- | |||||
| 17 | 32110022 | Support Bracket |
|
- | |||||
| 18 | 3211023 | Plate-mounting |
|
- | |||||
| 19 | 08047416 | Grille-condenser |
|
- | |||||
| 20 | 08047480 | Louver-vertical |
|
- | |||||
| 21 | 08047481 | Louver-vertical |
|
- | |||||
| 22 | 5308047513 | Link-vert Louver |
|
- | |||||
| 23 | G509185 | Nameplate |
|
- | |||||
| *10631 | 5300091988 | Vertical Extension Kit-window (non-illustrated) |
|
- | |||||
| 19A | 3018409 | Nameplate Rear Grille (non-illustrated) |
|
- | |||||
| 1A | A147883-03 | Seal Top Flange (non-illustrated) |
|
- | |||||
| 1B | A147883-02 | Seal Side Flange (non-illustrated) |
|
- | |||||
| 22A | 5308010914 | Clip-front/base (non-illustrated) |
|
- |
