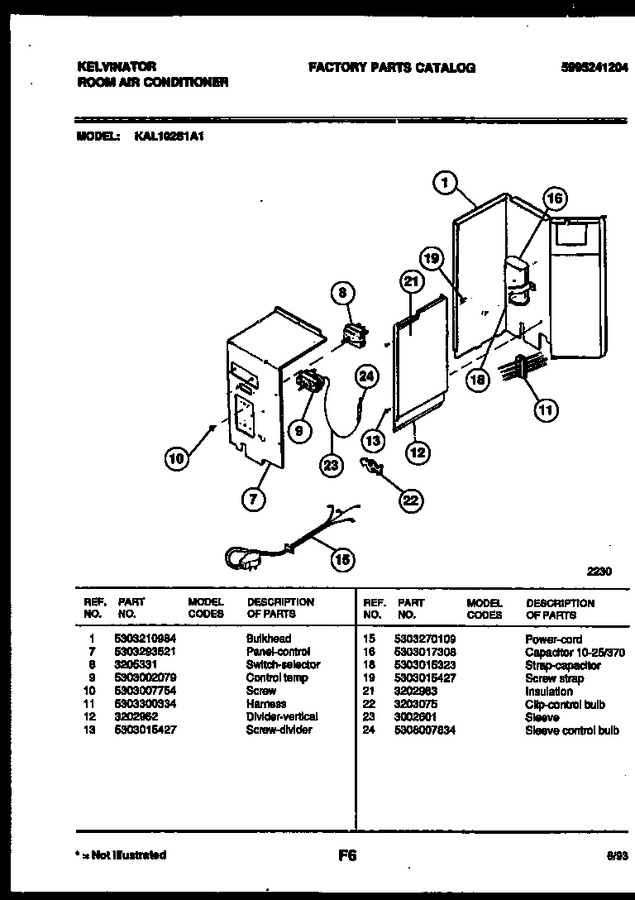

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210984 | Bulkhead |
|
- | |||||
| 7 | 5303293521 | Panel-control |
|
- | |||||
| 8 | 3205331 | Switch-selector |
|
- | |||||
| 9 | 5303002079 | Control Temp |
|
- | |||||
| 10 | 5303007754 | Screw |
|
- | |||||
| 11 | 5303300334 | Harness |
|
- | |||||
| 12 | 3202962 | Divider-vertical |
|
- | |||||
| 13 | 5303015427 | Screw - Divider |
|
- | |||||
| 15 | 5303270109 | Power Cord |
|
- | |||||
| 16 | 5303017308 | Capacitor 10-25/370 |
|
- | |||||
| 18 | 5303015323 | Strap-capacitor |
|
- | |||||
| 19 | 5303015427 | Screw-strap |
|
- | |||||
| 21 | 3202963 | Insulation |
|
- | |||||
| 22 | 3203075 | Clip-control Bulb |
|
- | |||||
| 23 | 3002601 | Sleeve |
|
- | |||||
| 24 | 5308007834 | Sleeve-control Bulb |
|
- |
