02 - Cabinet Parts
03 - Electric Parts
04 - Air Handling Parts
05 - Unit Parts
06 - Compressor
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

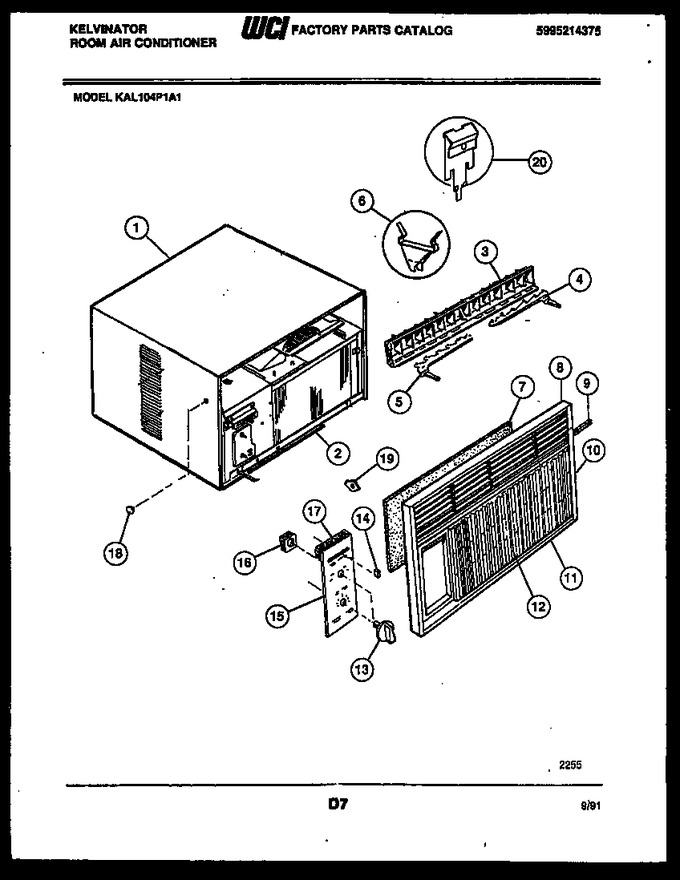

| 1 | 5303207184 | Wrapper |
|
- | |||||
| 2 | 5314949603 | Seal Chassis Btm |
|
- | |||||
| 3 | 5303002458 | Louver |
|
- | |||||
| 4 | 5303002164 | Link Rh |
|
- | |||||
| 5 | 5303002165 | Link-lh |
|
- | |||||
| 6 | 5303001844 | Clip-link |
|
- | |||||
| 7 | 5303001809 | Filter |
|
- | |||||
| 8 | 3018407 | Seal-top |
|
- | |||||
| 9 | 3018413 | Seal-mullion |
|
- | |||||
| 10 | 5303207203 | Seal-side |
|
- | |||||
| 11 | 5303271583 | Seal-btm |
|
- | |||||
| 12 | 3203264 | Front-complete |
|
- | |||||
| 13 | 5300331902 | Knob Control |
|
- | |||||
| 14 | 5303002189 | Knob-slide |
|
- | |||||
| 15 | 5303018760 | Dial Plate |
|
- | |||||
| 16 | 5303001775 | Spacer (2) |
|
- | |||||
| 17 | 5303001984 | Seal |
|
- | |||||
| 18 | 3017304 | Screw-front |
|
- | |||||
| 19 | 3203495 | Clip |
|
- | |||||
| 20 | 3200446 | Clip-front |
|
- | |||||
| 1A | 5303210207 | Grille Rear (non-illustrated) |
|
- |
