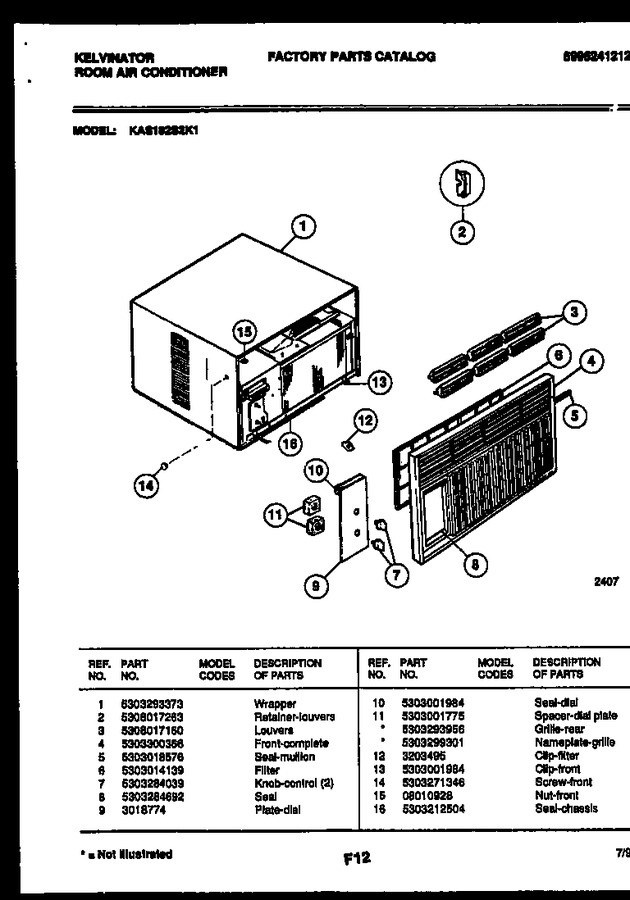

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303293373 | Wrapper |
|
- | |||||
| 2 | 5308017263 | Retainer-louvers |
|
- | |||||
| 3 | 5308017160 | Louvers |
|
- | |||||
| 4 | 5303300366 | Front-complete |
|
- | |||||
| 5 | 5303018576 | Seal-mullion |
|
- | |||||
| 6 | 5303014139 | Filter |
|
- | |||||
| 7 | 5303264039 | Knob-control (2) |
|
- | |||||
| 8 | 5303284692 | Seal |
|
- | |||||
| 9 | 3018774 | Plate-dial |
|
- | |||||
| 10 | 5303001984 | Seal-dial |
|
- | |||||
| 11 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| 12 | 3203495 | Clip-filter |
|
- | |||||
| 13 | 5303001984 | Clip-front |
|
- | |||||
| 14 | 5303271346 | Screw-front |
|
- | |||||
| 15 | 08010928 | Nut-front |
|
- | |||||
| 16 | 5303212504 | Seal-chassis |
|
- | |||||
| 11A | 5303293956 | Grille Rear (non-illustrated) |
|
- | |||||
| 11B | 5303299301 | Nameplate-grille (non-illustrated) |
|
- |
