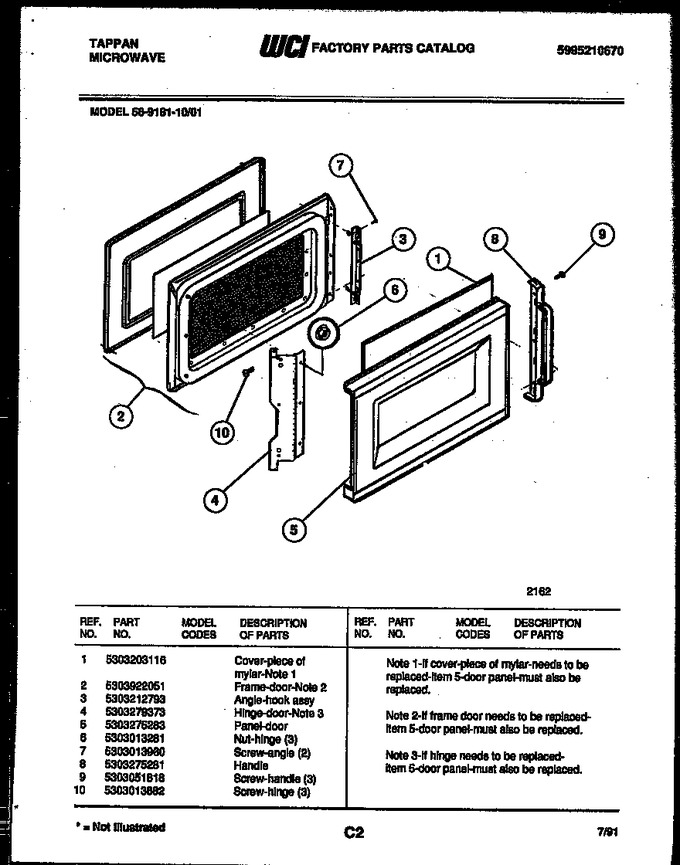

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303203116 | Cover-piece Of Mylar-(if Cover-piece Of Mylar-needs To B |
|
- | |||||
| 2 | 5303922051 | Frame-door-(if Frame-door Needs To Be Replaced-item 5-do |
|
- | |||||
| 3 | 5303212793 | Angle-hook Assy |
|
- | |||||
| 4 | 5303279373 | Hinge-door-(if Hinge Needs To Be Replaced-item 5-door Pa |
|
- | |||||
| 5 | 5303275283 | Panel-door |
|
- | |||||
| 6 | 5303013281 | Nut-hinge (3) |
|
- | |||||
| 7 | 5303013960 | Screw-angle (2) |
|
- | |||||
| 8 | 5303275281 | Handle |
|
- | |||||
| 9 | 5303051818 | Screw-handle (3) |
|
- | |||||
| 10 | 5303013882 | Screw-hinge (3) |
|
- |
